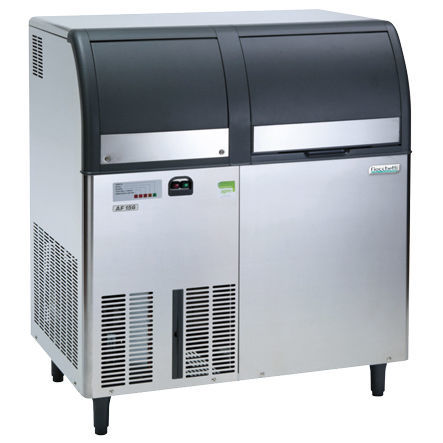

Flake ice maker AF1156A

Overview
Granular ice maker suitable for use in laboratories, hospitals and care homes. Granular ice production capacity 169 kg/24h with air cooling. Designed for professional healthcare use; available in various sizes and in cube or granular versions, with air (A) or water (W) condensation. Stainless steel structure and quality components.

Key information

• Category: GRANULAR - STANDARD
• Daily production: 169 kg/24h
• Ice type: Granular
• External dimensions (LxDxH): 95 x 65.5 x 108.3 cm
• Electronics: STANDARD

Structure and refrigeration
Condensation type: air
Daily ice production capacity (Kg/24H): up to 169 Kg
Storage bin capacity: 60 Kg
Structure: stainless steel with internal insulated plastic storage tank. Retractable hinged door for easy access to ice bin, shovel included. Removable front condenser filter. Electronic control with self-diagnosis and visual alarms (malfunction, maintenance, etc.). Safety thermostat to stop production when maximum level is reached.

Technical data (refrigeration / operation)

• Refrigerant: R290
• Electric consumption: 13 kWh/24h
• Water consumption: 6 l/h
• Fuse (A): 10
• Noise level:
• Water inlet temperature min/max: 5/38 °C
• Pressure min/max: 1 / 5 bar

Applications and use
Ideal for clinics, hospital wards, research and pharmaceutical laboratories, and any activity requiring continuous ice supply. Available in various sizes and configurations (cubes or granules; air or water condensation).

Accessories available on request

• Demineralized water kit
• Power supply 220V/1~/60Hz
• Cage packaging

Features / technical specifications

• Ice production: 169 kg/24h
• Ice type: Granular
• Storage bin capacity: 60 kg
• External dimensions (LxDxH): 95 x 65.5 x 108.3 cm
• Condensation type: air
• Electronics type: STANDARD
• Refrigerant: R290
• Electric consumption: 13 kWh/24h
• Water consumption: 6 l/h
• Fuse: 10 A
• Noise:
• Water inlet temperature: 5/38 °C
• Water pressure: 1 / 5 bar
