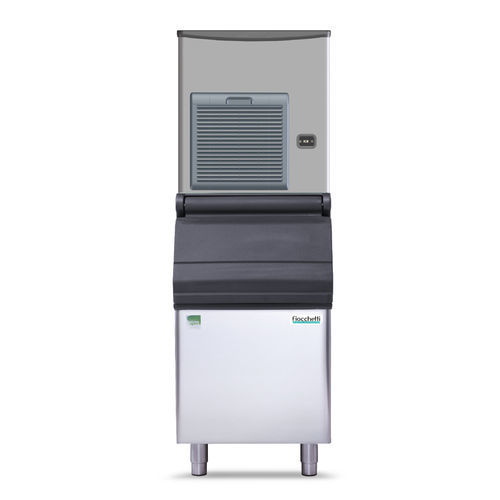

Flake ice maker MB427W

Overview
Continuous flake ice production unit with integrated storage bin, designed for professional use. Production components are stainless steel; the lower bin features a plastic interior with rounded corners to simplify cleaning and maintain hygiene. Polyurethane foam insulation preserves ice quality. Electronic control provides self-diagnosis and visual alarm signals; a safety thermostat stops production at maximum bin level. Built-in automatic continuous sanitization and a front-removable condenser filter ease maintenance.

Main features

• Flake ice maker with integrated storage bin
• Rated production: 129 kg/24h (noted maximum up to 230 kg/24h)
• Bin capacity: 129 kg
• Ice type: Flake ice
• External dimensions (WxDxH): 56.9 x 84.1 x 164.5 cm
• Electronic controller with self-diagnosis and alarm signals (STANDARD)
• Water-cooled condenser
• Sliding drop-down access door to storage bin
• Stainless steel production unit; storage bin with plastic interior and rounded corners; supplied with ice scoop
• Integrated automatic continuous natural sanitization system
• Front-removable condenser filter for simplified routine maintenance

Accessories available on request

• Demineralized water kit
• Wooden crate packaging

Technical data

• Refrigerant: R290
• Energy consumption: 15 kWh/24h
• Water consumption: 173 l/h
• Fuse: 10 A
• Noise level: <70 dBA
• Water inlet temperature: 5 / 38 °C
• Water pressure: 1 / 5 bar

Structure and refrigeration

• Stainless steel production unit and lower storage tank
• Storage bin: plastic interior with rounded corners for easy cleaning; polyurethane foam insulation
• Sliding drop-down door to access the ice storage compartment
• Safety thermostat that stops production at maximum bin level
• Electronic control with self-diagnosis and alarm signals
• Integrated automatic continuous sanitization system
• Front-removable condenser filter for maintenance

Model / specifications

• Model: MB427W
• Production (display): 129 kg/24h
• Maximum daily production (page note): up to 230 kg/24h
• Bin capacity: 129 kg
• Ice type: Flake ice
• External dimensions (WxDxH): 56.9 x 84.1 x 164.5 cm
• Refrigerant gas: R290
• Energy consumption: 15 kWh/24h
• Water consumption: 173 l/h
• Fuse: 10 A
• Noise level: <70 dBA
• Water inlet temperature: 5 / 38 °C
• Water pressure: 1 / 5 bar
• Controller: Electronic (STANDARD) with self-diagnosis and alarms
• Construction: Stainless steel production unit; storage bin with plastic interior and rounded corners
• Sanitization: Automatic continuous natural sanitization system
• Maintenance: Front-removable condenser filter
• Included: ice scoop
