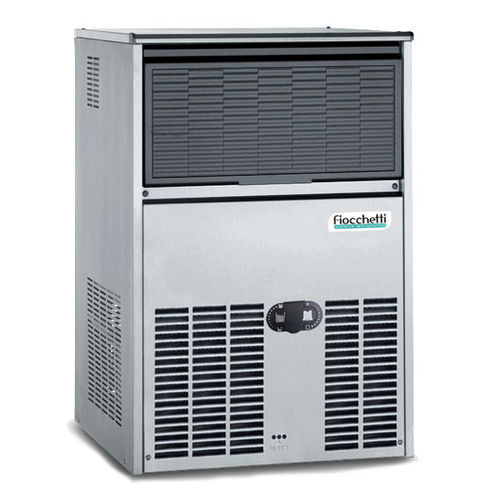

Cube ice maker B40A

Short description
Professional cube ice maker B40A for medical and hospital environments, designed to supply a continuous quantity of sanitary ice for clinics, hospital wards and research laboratories.

Overview
Model code: PCS0040A. Air-cooled cube ice machine with stainless-steel structure and internal plastic-insulated storage bin. Suitable for orthopedic clinics, hospital departments and laboratory use where constant ice production and hygienic handling are required.

Main features

• Condensing: Air
• Daily production: up to 37 kg/24h
• Bin capacity: 15 kg
• Structure: stainless steel with internal storage bin insulated in plastic material
• Ergonomic retractable door for storage access; ice scoop included
• Front removable condenser filter for maintenance
• Safety thermostat to stop production at maximum level or in case of high condensing; ON/OFF button
• Electronic controller: STANDARD

Product stats

• Production capacity (header value): 37 kg/24h
• Type of ice: Cube ice
• External dimensions (WxDxH): 46.7 x 57 x 69 cm
• Bin capacity: 15 kg

Technical data

• Refrigerant gas type: R290
• Energy consumption: 10.8 kWh/24h
• Water consumption: 4.3 l/h
• Fuse (A): 10
• Noise level:
• Water inlet temperature min/max: 5/38°C
• Pressure (BAR) min/max: 1 / 5 bar

Accessories available on request

• Feet for ice maker
• Wooden crate package

Specifications

• Model: B40A
• Product code: PCS0040A
• Production: up to 37 kg/24h
• Type of ice: Cube ice
• Condensing: Air
• Bin capacity: 15 kg
• External dimensions (WxDxH): 46.7 x 57 x 69 cm
• Structure material: stainless steel
• Internal storage: plastic-insulated bin; retractable door; ice scoop included
• Front removable condenser filter
• Safety thermostat; ON/OFF button
• Electronic controller: STANDARD
• Refrigerant: R290
• Energy consumption: 10.8 kWh/24h
• Water consumption: 4.3 l/h
• Fuse: 10 A
• Noise level:
• Water inlet temperature: 5/38°C
• Water pressure: 1 / 5 bar
