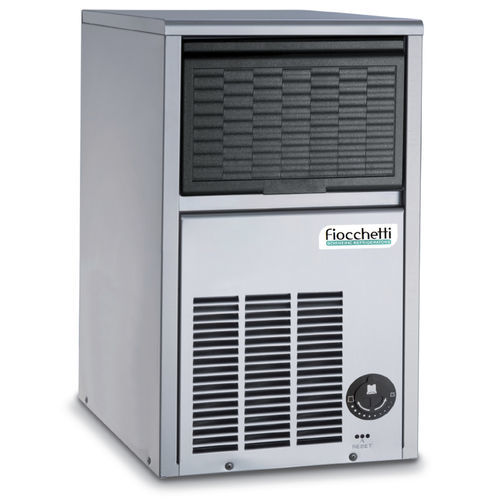

Cube ice maker B18W

Overview
Cube ice maker for medical use (orthopedic clinics, hospital departments and research labs). Compact professional unit with 18.5 kg/24h nominal production and water‑cooled condenser. Stainless‑steel structure designed for continuous operation in healthcare environments.

Key specifications

• Model: B18W
• Code: PCS0018W
• Production capacity: 18.5 kg / 24 h
• Type of ice: Cube ice
• External dimensions (WxDxH): 33.4 x 45.7 x 59.9 cm
• Electronic controller: STANDARD
• Bin capacity: 6 kg

Structure and refrigeration

• Condensing: Water
• Structure: fully stainless steel; internal storage bin insulated with plastic material
• Ergonomic retractable door for ice storage access
• Ice scoop included
• Front removable condenser filter
• Safety thermostat to stop production at maximum level or under high condensing conditions
• On/Off button

Technical data

• Refrigerant gas type: R290
• Energy consumption: 13.6 kWh/24h
• Water consumption: 36.9 l/h
• Fuse: 10 A
• Noise level: <60 dBA
• Water inlet temperature min/max: 5 / 38 °C
• Water pressure min/max: 1 / 5 bar

Accessories (on request)

• Feet for ice maker
• Wooden crate packaging

Commercial designation

• Denomination: B18W
• Nominal production: 18.5 kg / 24 h
• Condenser cooling: water
• Reserve capacity: 6 kg
• Type of ice: cube
• External dimensions: 33.4 x 45.7 x 59.9 cm
• Structure material: stainless steel
