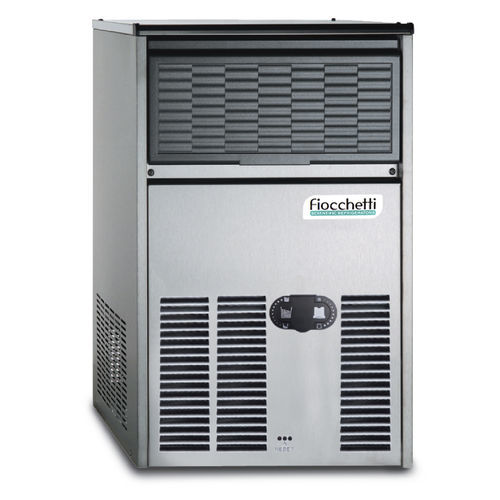

Cube ice maker B20W

Product overview
Ice cube maker suitable for orthopedic clinics and hospital departments.

Short description
Small ice cube maker with water-cooled condenser designed for professional use in healthcare environments (clinics, hospital departments, scientific and pharmaceutical research laboratories). Continuous ice supply; available in cube or flake variants, with air (A) or water (W) cooled condenser and variable daily production. Stainless-steel structure and quality components for reliable operation.

Structure and refrigeration

• Condensing: Water (water-cooled condenser)
• Daily production (Kg/24H): up to 24 kg
• Bin capacity: 8 kg
• Structure: stainless steel; internal storage bin insulated in plastic
• Ergonomically retractable door for storage access
• Ice scoop included
• Front removable condenser filter
• Safety thermostat to stop production at maximum level or in case of high condensing
• ON/OFF button

Refrigerator technical data

• Refrigerant: R290
• Energy consumption: 4.8 kWh/24h
• Water consumption: 21.5 l/h
• Fuse: 10 A
• Noise level:
• Water inlet temperature min/max: 5 / 38 °C
• Operating pressure min/max: 1 / 5 bar

Accessories available on request

• Feet for ice maker
• Wooden crate packaging
•


Typical applications

• Clinics and hospitals (surgical departments, orthopedics)
• Scientific and pharmaceutical research laboratories
• Any medical or laboratory activity requiring continuous ice production

Technical specifications

• Model: B20W
• Code: PCS0020W
• Category: CUBE ICE - STANDARD
• Production: up to 24 kg/24h
• Bin capacity: 8 kg
• Ice type: Cube Ice
• External dimensions (WxDxH): 39 x 51.5 x 64 cm
• Condensing: Water
• Refrigerant: R290
• Energy consumption: 4.8 kWh/24h
• Water consumption: 21.5 l/h
• Fuse: 10 A
• Noise level:
• Water inlet temp: 5 / 38 °C
• Pressure: 1 / 5 bar
• Structure: stainless steel; internal storage bin insulated in plastic
• Included: ice scoop; front removable condenser filter; safety thermostat; ON/OFF button
