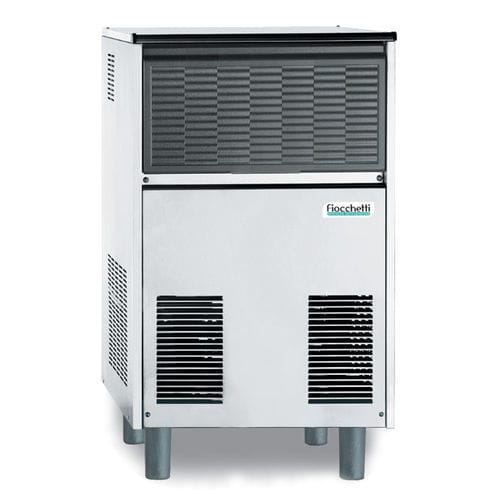

Flake ice maker BF80A

Overview
Flake ice maker designed for professional use in healthcare environments: clinics, hospital wards, laboratories and care homes. Fiocchetti BF80A provides continuous flake ice production with a stainless-steel structure and components engineered for hygienic, reliable operation in medical and research settings.

Product highlights

• Type of ice: Flake ice
• Daily production: 68 kg/24h
• Electronic controller: STANDARD (electronic control with self-diagnosis and visual alarms)
• Structure: stainless steel with internal storage bin insulated in plastic
• Storage bin: retractable ergonomical door for access; ice scoop included
• Front removable condenser filter
• Safety thermostat to block production at maximum level or under high condensing; ON/OFF button

Key dimensions & capacity
Production capacity: 68 kg/24h
Bin capacity: 25 kg
External dimensions (WxDxH): 52,9 x 62,6 x 92,1 cm

Refrigeration & utilities (technical data)

• Refrigerant gas: R290
• Energy consumption: 6,9 kWh/24h
• Water consumption: 2,2 l/h
• Fuse rating: 10 A
• Noise level:
• Water inlet temperature (min/max): 5/38 °C
• Water pressure (min/max): 1 / 5 bar

Accessories (available on request)

• Power supply 220V/1~/60Hz
• Wooden crate packaging

Technical specifications

• Model: BF80A
• Brand: Fiocchetti
• Product type: Flake ice maker (professional)
• Condensing: Air-cooled
• Daily production (kg/24h): 68
• Bin capacity (kg): 25
• Structure: stainless steel; internal storage bin insulated in plastic
• Door: retractable ergonomical door; ice scoop included
• Controller: Electronic with self-diagnosis and visual alarms (STANDARD)
• Safety features: thermostat to block production at max level; ON/OFF button
• External dimensions (WxDxH): 52,9 x 62,6 x 92,1 cm
• Refrigerant: R290
• Energy consumption: 6,9 kWh/24h
• Water consumption: 2,2 l/h
• Fuse: 10 A
• Noise level:
• Water inlet temperature range: 5/38 °C
• Water pressure range: 1 / 5 bar
