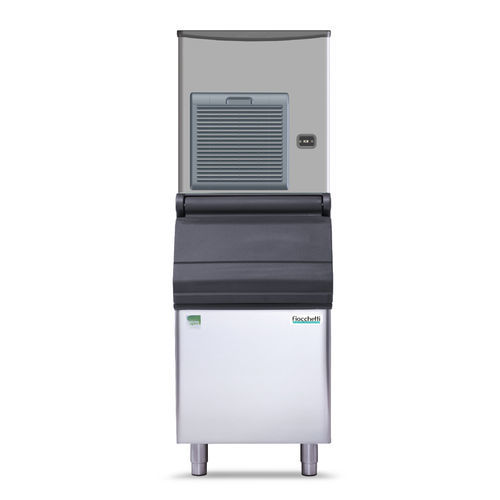

Flake ice maker MB427A

Flake ice maker with storage bin
The MB427A produces flake ice continuously and is designed for professional applications. The production unit is stainless steel and the lower storage bin features a plastic interior with rounded corners for easy cleaning and improved hygiene. Polyurethane foam insulation helps preserve ice quality during storage.

Operation and safety
The system is managed by an electronic controller with self-diagnosis and visual alarm signals. A safety thermostat automatically stops production when the maximum level in the bin is reached. An automatic, continuous sanitization system is integrated. The condenser filter is front-removable to simplify routine maintenance.

Main features

• Nominal production capacity: 129 kg/24h
• Maximum reported daily production: up to 187 kg/24h
• Type of ice: Flake ice
• External dimensions (WxDxH): 56,9 x 84,1 x 164,5 cm
• Bin capacity: 129 kg
• Electronic controller: STANDARD (self-diagnosis and alarm signals)
• Construction: stainless steel production unit; storage bin with plastic interior and rounded corners; polyurethane foam insulation
• Access: sliding drop-down door for ice storage compartment
• Maintenance: front-removable condenser filter; includes ice scoop

Refrigeration technical data

• Condensing: Air
• Refrigerant type: R290
• Energy consumption: 16 kWh/24h
• Water consumption: 8 l/h
• Fuse: 10 A
• Noise level: <70 dBA
• Water inlet temperature min/max: 5/38 °C
• Pressure (BAR) min/max: 1 / 5 bar

Accessories available on request

• Kit for demineralized water
• Power supply 220V/1~/60Hz
• Wooden crate packaging

Technical specifications

• Model: MB427A
• Brand: Fiocchetti
• Production capacity: 129 kg/24h (nominal); up to 187 kg/24h (reported)
• Bin capacity: 129 kg
• Type of ice: Flake ice
• External dimensions (WxDxH): 56,9 x 84,1 x 164,5 cm
• Refrigerant: R290
• Energy consumption: 16 kWh/24h
• Water consumption: 8 l/h
• Fuse: 10 A
• Noise level: <70 dBA
• Water inlet temperature: 5/38 °C
• Pressure range: 1 / 5 bar
• Construction: stainless steel; storage bin with plastic interior and rounded corners; polyurethane foam insulation
• Controls: electronic controller with self-diagnosis and alarm signals
• Safety: thermostat stops production at maximum bin level
• Sanitization: integrated automatic and continuous sanitization system
• Maintenance: front-removable condenser filter; included ice scoop
