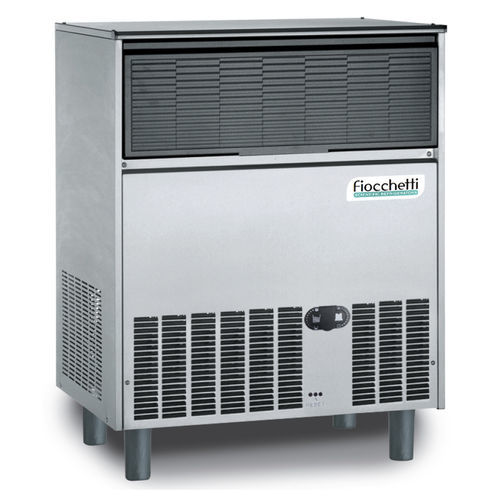

Cube ice maker B90W

Overview
Ice cube maker designed for professional healthcare environments such as clinics, hospital departments and research laboratories. Model B90W delivers 86 kg of cube ice per 24 hours and features a water-cooled condenser. Available in cube or flake versions and in air (A) or water (W) condenser variants.

Key information

• Production capacity: 86 kg / 24h
• Type of ice: Cube ice
• External dimensions (WxDxH): 70 x 60 x 97 cm
• Condensing: water (water-cooled condenser)
• Bin capacity: 50 kg
• Electronic controller: STANDARD
• Structure: stainless steel
• Internal storage bin insulated in plastic material
• Ergonomically disappearing door for ice storage access
• Ice scoop included
• Front removable condenser filter
• Safety thermostat to stop production at maximum level or in case of high condensing
• ON/OFF button

Structure and refrigeration (features)

• Condensing: water
• Robust stainless-steel structure and professional-grade components

Technical data

• Refrigerant gas type: R290
• Energy consumption: 13.6 kWh/24h
• Water consumption: 36.9 l/h
• Fuse (A): 10
• Noise level: <70 dBA
• Water inlet temperature min/max: 5 / 38 °C
• Operating pressure min/max: 1 / 5 bar

Accessories available on request

• Wooden crate package

Technical specifications

• Model: B90W
• Production capacity: 86 kg/24h
• Type of ice: Cube ice
• Condensing: water-cooled
• Refrigerant: R290
• Energy consumption: 13.6 kWh/24h
• Water consumption: 36.9 l/h
• Bin capacity: 50 kg
• External dimensions (WxDxH): 70 x 60 x 97 cm
• Fuse: 10 A
• Noise level: <70 dBA
• Water inlet temp: 5–38 °C
• Pressure range: 1–5 bar
• Structure material: stainless steel
• Includes: ice scoop, front removable condenser filter, safety thermostat, ON/OFF button
