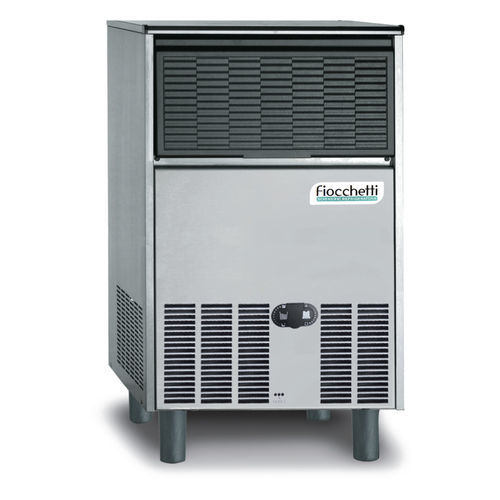

Cube ice maker B50W

Overview
Ice cube maker designed for continuous professional use in healthcare environments (clinics, hospital departments, orthopaedic practices), and in scientific and pharmaceutical laboratories. Fiocchetti B50W provides up to 48 kg of cube ice per 24 hours. Available in cube or flake versions with air (A) or water (W) cooled condensers. Robust stainless-steel construction and high-quality components ensure reliable performance in medical settings.

Key product data

• Model: B50W
• Commercial code: PCS0050W
• Production capacity: up to 48 kg/24h
• Type of ice: Cube ice
• Bin capacity: 22 kg
• External dimensions (WxDxH): 46,7 x 57 x 79 cm
• Electronic controller: STANDARD

Structure and refrigeration

• Condensing: water cooled (W)
• Structure: full stainless-steel body with internal storage bin insulated in plastic
• Ergonomic retractable door for ice access
• Ice scoop included
• Front removable condenser filter
• Safety thermostat to stop production at maximum level or in case of high condensing
• ON/OFF button

Applications

• Intended for healthcare facilities, hospital departments, clinics, research and pharmaceutical laboratories
• Suitable for any activity requiring a continuous supply of ice
• Available in different sizes and with air (A) or water (W) cooled condensers; this model is water cooled

Technical specifications

• Refrigerant gas: R290a
• Energy consumption: 9.7 kWh/24h
• Water consumption: 44.4 l/h
• Fuse: 10 A
• Noise level: <63 dBA
• Water inlet temperature min/max: 5 / 38 °C
• Water pressure min/max: 1 / 5 bar
