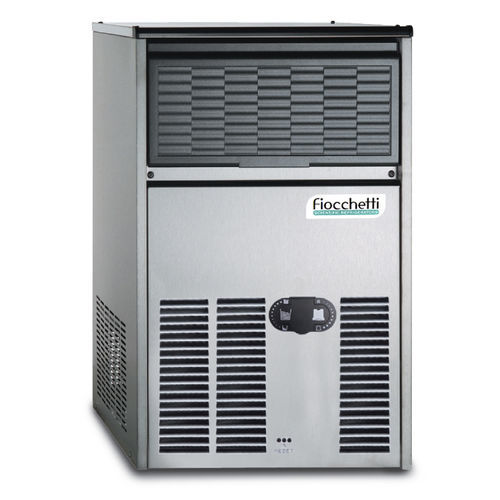

Cube ice maker B30A

Short description
Ice maker for medical and laboratory use, suitable for orthopedic clinics and hospital departments.

Overview
Fiocchetti ice makers are built for continuous professional use in healthcare, clinical and research environments. Available in cube or flake versions, with air (A) or water (W) cooled condensers and different daily capacities. Stainless-steel exterior and high-quality components ensure reliable operation in medical settings.

Structure and refrigeration – main features

• Condensing: Air
• Daily production: up to 29 kg/24h (values reported on the sheet)
• Bin capacity: 8 kg
• Exterior: stainless-steel; internal storage bin insulated in plastic
• Ergonomic retracting door for access to ice bin
• Ice scoop included
• Front removable condenser filter
• Safety thermostat to stop production at maximum level or in case of condensing fault
• ON/OFF button

Accessories available on request

• Adjustable feet for ice maker
• Wooden crate packaging

Technical data

• Refrigerant: R290
• Energy consumption: 6.8 kWh/24h
• Water consumption: 4.3 l/h
• Fuse: 10 A
• Noise level:
• Water inlet temperature (min/max): 5 / 38 °C
• Operating water pressure (min/max): 1 / 5 bar

Specifications

• Model: B30A
• Type of ice: Cube
• Production capacity (reported values): up to 29 kg/24h
• Bin capacity: 8 kg
• Dimensions (WxDxH): 39 x 51.5 x 64 cm
• Condensing: Air-cooled (A)
• Refrigerant gas: R290
• Energy consumption: 6.8 kWh/24h
• Water consumption: 4.3 l/h
• Fuse: 10 A
• Noise:
• Water inlet temp range: 5–38 °C
• Operating pressure: 1–5 bar
• Structure: stainless-steel exterior; insulated plastic internal bin
• Controller: STANDARD electronic
• Included: ice scoop; front removable condenser filter; safety thermostat; ON/OFF button
