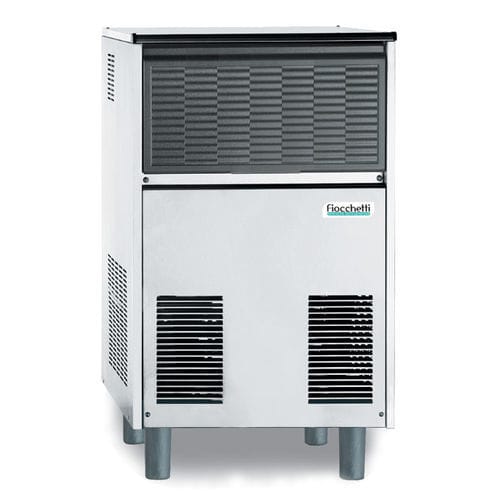

Flake ice maker BF80W

Overview
Flake ice maker Fiocchetti BF80W (Code PGS0080W). Designed for professional use in healthcare and laboratory environments: clinics, hospital wards, research and pharmaceutical laboratories, and facilities requiring a continuous supply of flake ice. Category: FLAKE ICE - STANDARD.

Key data

• Production capacity: up to 72 kg/24h
• Type of ice: Flake ice
• External dimensions (WxDxH): 52.9 x 62.6 x 92.1 cm
• Electronic controller: STANDARD
• Bin capacity: 25 kg

Structure and refrigeration

• Condensing: water-cooled (W)
• Construction: stainless steel body with internal storage bin insulated in plastic
• Ergonomic retractable access door for the bin; ice scoop included
• Front removable condenser filter
• Electronic control with self-diagnosis and visual alarms (fault, maintenance, level, etc.)
• Safety thermostat to stop production when the maximum level is reached or under high condensing
• ON/OFF button

Applications
Intended for professional healthcare and laboratory use where a reliable continuous supply of flake ice is required: medical clinics, hospital departments, research and pharmaceutical labs, care homes.

Accessories available on request

• Wooden crate packaging

Technical specifications

• Daily production (Kg/24h): up to 72 kg
• Bin capacity: 25 kg
• Refrigerant gas: R290
• Energy consumption: 6 kWh/24h
• Water consumption: 54 l/h
• Fuse (A): 10
• Noise level: <65 dBA
• Water inlet temperature min/max: 5 / 38 °C
• Water pressure min/max: 1 / 5 bar
• External dimensions (WxDxH): 52.9 x 62.6 x 92.1 cm
• Type of ice: Flake ice
• Electronic controller: STANDARD
• Construction details: stainless steel body; internal plastic-insulated bin; retractable access door; ice scoop included; front removable condenser filter
• Control: electronic with self-diagnosis and visual alarms
• Safety features: thermostat to block production at maximum level or under high condensing
