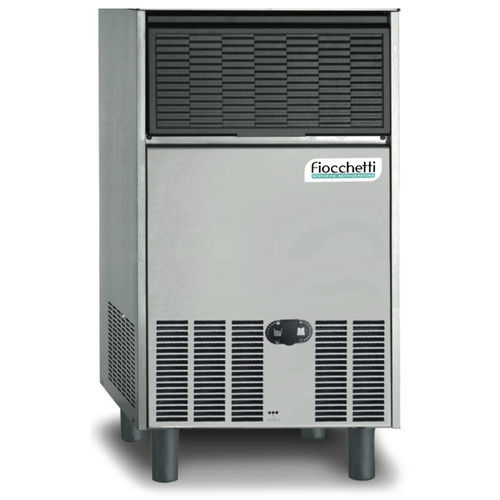

Cube ice maker B65W

Overview
Ice cube maker suitable for medical environments (clinics, hospital departments, surgical units) requiring continuous supply of cube ice.

Summary
Fiocchetti B65W is a water-cooled ice cube maker with a nominal production of 62 kg per 24 hours and a 40 kg storage bin. Designed for professional use in healthcare settings, laboratories and other facilities where hygienic, continuous ice production is required.

Main characteristics

• Production capacity: 62 kg/24h
• Type of ice: Cube ice
• External dimensions (WxDxH): 53,5 x 60 x 91 cm
• Electronic controller: STANDARD
• Bin capacity: 40 kg
• Condensing: water (W)

Structure and refrigeration - features

• Fully stainless-steel structure for easy cleaning and corrosion resistance
• Internal storage bin insulated in plastic material
• Ergonomic retractable door for secure access to stored ice
• Ice scoop included
• Front removable condenser filter for maintenance
• Safety thermostat to stop production at maximum level or under high condensing
• ON/OFF button for simple control

REFRIGERATOR TECHNICAL DATA
Refrigerant gas type: R290
Energy consumption: 13,6 kWh/24h
Water consumption: 36,9 l/h
Fuse (A): 10
Noise level: Water inlet temperature min/max: 5/38°C
Pressure (BAR) min/max: 1 / 5 bar

Accessories

• Wooden cage packaging available on request

Characteristics / technical specifications

• Model: B65W
• Brand: Fiocchetti
• Production capacity: 62 kg/24h
• Bin capacity: 40 kg
• Ice type: Cube ice
• Condenser: water cooled (W)
• External dimensions (WxDxH): 53,5 x 60 x 91 cm
• Structure: stainless steel
• Internal storage: plastic insulated bin
• Refrigerant: R290
• Energy consumption: 13,6 kWh/24h
• Water consumption: 36,9 l/h
• Fuse: 10 A
• Noise level:
• Water inlet temperature range: 5–38 °C
• Operating water pressure: 1–5 bar
• Controls: STANDARD electronic controller
• Included: retractable storage door and ice scoop, front removable condenser filter
• Safety: thermostat to stop production at maximum level or in case of high condensing
