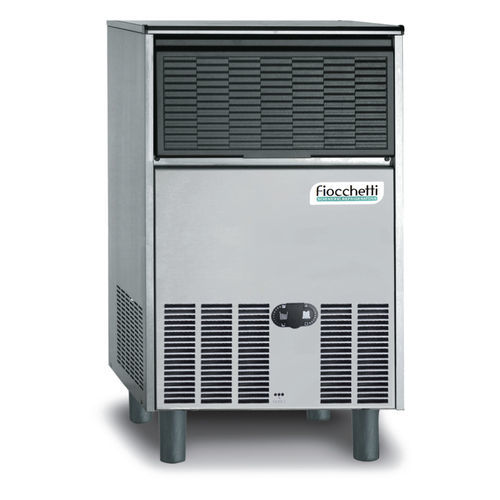

Cube ice maker B50A

Overview
Fiocchetti B50A ice cube maker for professional healthcare use. Air-cooled condenser, nominal production 47 kg/24h and internal storage bin 22 kg. External stainless-steel structure suitable for clinical and laboratory environments.

Applications

• Orthopedic surgery rooms, hospital departments and clinics
• Scientific and pharmaceutical research laboratories
• Any medical or laboratory activity requiring a continuous supply of cube ice

Key data

• Code: PCS0050A
• Model: B50A
• Production capacity: 47 kg/24h
• Ice type: Cube ice
• External dimensions (WxDxH): 46,7 x 57 x 79 cm
• Bin capacity: 22 kg
• Electronic controller: STANDARD

Structure and refrigeration

• Condensing: Air-cooled condenser
• Stainless-steel external structure
• Internal storage bin insulated in plastic material
• Ergonomically disappearing door for bin access
• Ice scoop included
• Front removable condenser filter
• Safety thermostat to stop production at maximum level or in case of high condensing
• ON/OFF button

Technical data

• Refrigerant gas type: R290
• Energy consumption: 12,2 kWh/24h
• Water consumption: 4,4 l/h
• Fuse (A): 10
• Noise level: <64 dBA
• Water inlet temperature min/max: 5/38 °C
• Operating water pressure min/max: 1 / 5 bar

Characteristics / technical specifications

• Product family: Cube ice - Standard
• Daily production (typical): 47 kg/24h
• Ice form: Cube
• Cooling type: Air condenser (water-cooled versions available in the range)
• Storage bin: Internal, plastic-insulated, disappearing door
• Construction: Stainless-steel external structure
• Included accessories: Ice scoop
• Controls: Standard electronic controller
• Refrigerant: R290
• Power/consumption: 12,2 kWh/24h
• Water use: 4,4 l/h
• Electrical protection: 10 A fuse
• Acoustic emission: <64 dBA
• Water inlet operating temp: 5–38 °C
• Operating water pressure: 1–5 bar
• Bin capacity: 22 kg
• External dimensions (WxDxH): 46,7 x 57 x 79 cm
