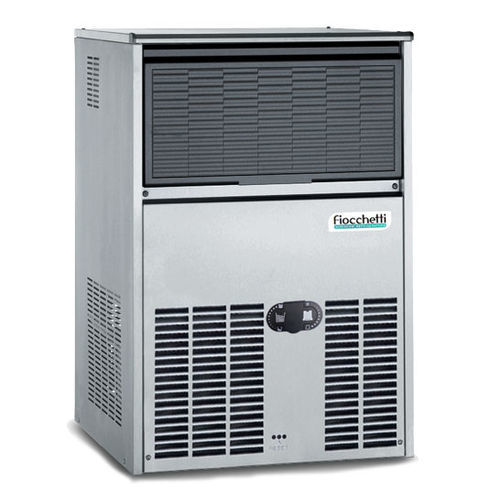

Cube ice maker B40W

Overview
Ice cube maker designed for professional use in medical environments such as orthopedic clinics, hospital departments and research laboratories. Water-cooled condenser model providing continuous cube ice production.

Recommended application
Suitable for clinics, hospital departments, laboratories and any medical activity requiring a reliable and continuous supply of cube ice.

Key features

• Model: B40W
• Code: PCS0040W
• Daily production: 38 kg / 24 h
• Type of ice: Cube ice
• External dimensions (WxDxH): 46.7 x 57 x 69 cm
• Electronic controller: STANDARD
• Condensing: water-cooled
• Bin capacity: 15 kg
• Structure: stainless-steel body with internal storage bin insulated in plastic
• Ergonomically recessed flip door for ice access
• Ice scoop included
• Front removable condenser filter
• Safety thermostat: stops production at maximum level or in case of abnormal condensing
• ON/OFF button

Technical data

• Refrigerant gas: R290
• Energy consumption: 7 kWh/24h
• Water consumption: 28 l/h
• Fuse: 10 A
• Noise level: <62 dBA
• Water inlet temperature min/max: 5 / 38 °C
• Water pressure min/max: 1 / 5 bar

Accessories (available on request)

• Feet for ice maker
• Wooden crate packaging

Product identification / Specifications

• Denomination / Model: B40W
• Code: PCS0040W
• Production capacity: 38 kg/24h
• Ice type: Cube ice
• External dimensions: 46.7 x 57 x 69 cm (WxDxH)
• Condensing: water-cooled
• Bin capacity: 15 kg
• Controller: STANDARD electronic
• Structure: stainless steel; internal storage bin insulated in plastic
• Included: ice scoop
• Refrigerant: R290
• Energy consumption: 7 kWh/24h
• Water consumption: 28 l/h
• Fuse: 10 A
• Noise level: <62 dBA
• Water inlet temp: 5 / 38 °C
• Pressure: 1 / 5 bar
