Radius compression plate 31101-I series

distallockingtitanium

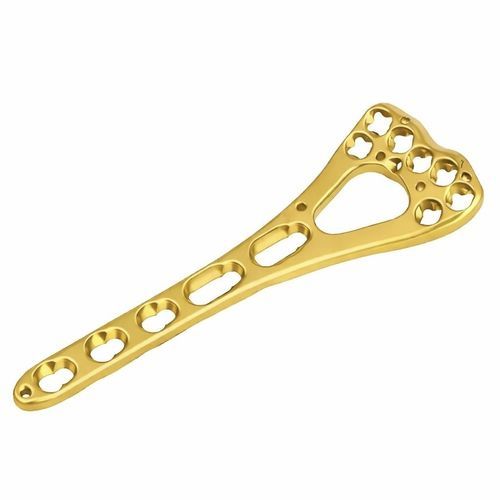

Multi-Directional Distal Radius Locking Plate – Volar Wrist Fracture Fixation System

Product Overview
The Multi-Directional Distal Radius Locking Plate is an anatomically contoured volar plate for distal radius fracture fixation, designed to provide stable and precise fixation in complex wrist fractures. This orthopedic trauma implant supports multi-directional locking screw placement, allowing surgeons to optimize screw trajectory for improved subchondral support and reliable fracture stabilization.

The system is suitable for minimally invasive surgical techniques and ensures dependable fixation in both normal and osteoporotic bone.

Key Features

• Multi-directional locking technology for variable screw angulation
• Anatomically contoured volar distal radius plate
• Enhanced subchondral support with multiple screw options in the plate head
• Suitable for complex and comminuted fractures
• Low-profile design to minimize soft tissue irritation
• Available in left and right configurations
• Combination holes for locking and cortical screws
• Optimized for fixation in osteoporotic bone

Technical Specifications

• Product Type: Distal radius locking plate (volar)
• Application: Wrist / distal radius fracture fixation
• Material: Medical-grade titanium alloy (Ti-6Al-4V)
• Plate Lengths: 60 mm to 110 mm
• Shaft Holes: 3 to 8
• Head Design: 7 holes
• Configuration: Left / right
• Screw Compatibility: Locking screws: Ø 2.4 mm, Cortical screws: Ø 2.4 mm
• Fixation Type: Hybrid (locking and non-locking)
• Sterility: Non-sterile; to be sterilized in a medical facility prior to use
• Usage: Single-use

Clinical Indications

• Distal radius fractures
• Intra-articular wrist fractures
• Comminuted distal radius fractures
• Fractures in osteoporotic bone
• Corrective osteotomies of the distal radius
