Tibia compression plate 31200 series

lockingtitanium

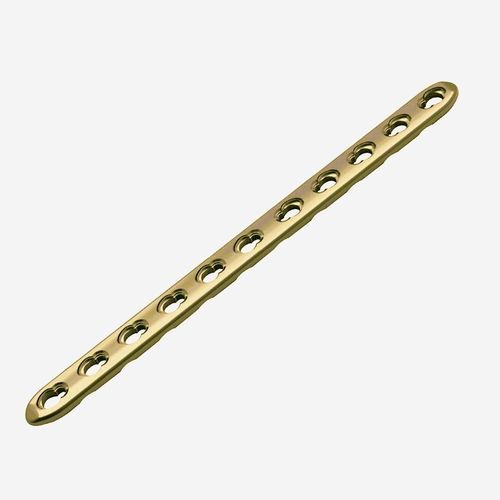

Tibia Locking Compression Plate – Tibial Fracture Stabilization System
Product Overview

The Tibia Locking Compression Plate is a versatile orthopedic fixation system designed for the treatment of tibial fractures involving the diaphyseal, metaphyseal, and periarticular regions. The plate combines conventional compression plating principles with advanced locking technology, providing reliable fixation in both normal and osteoporotic bone.

The locking compression design allows surgeons to apply compression across the fracture site while simultaneously achieving angular stability through locking screw fixation. This combination enhances construct strength, preserves periosteal blood supply, and promotes biological fracture healing.

Manufactured from medical-grade titanium alloy, the plate offers excellent mechanical performance, corrosion resistance, and biocompatibility while maintaining a low-profile design to minimize soft tissue irritation.

Key Features
-Locking compression technology combining compression and angular stability
-Suitable for a wide range of tibial fracture patterns
-Compatible with locking and cortical screws
-High mechanical strength and fatigue resistance
-Optimized load distribution throughout the fixation construct
-Supports minimally invasive plate osteosynthesis (MIPO) techniques
-Reliable fixation in osteoporotic bone
-Low-profile design to reduce soft tissue irritation
-Allows compression, bridging, and neutralization techniques
-Promotes biological fracture healing and early rehabilitation

Technical Specifications
-Product Type: Tibial locking compression plate
-Application: Tibial fracture fixation
-Material: Medical-grade titanium alloy (Ti-6Al-4V)
-Plate Configuration: Locking compression plate
-Available Lengths: Multiple length configurations available
-Number of Holes: Various hole configurations
-Compatible Screws:
• Locking screws: Ø 5.0 mm
• Cortical screws: Ø 4.5 mm
-Fixation Type: Locking compression fixation
-Surface Finish: Color anodized
-Sterility: Non-sterile; to be sterilized in a medical facility prior to use
-Usage: Single-use

Clinical Indications
-Tibial shaft fractures
-Metaphyseal tibial fractures
-Periarticular tibial fractures
-Comminuted fractures
-Osteoporotic fractures
-Segmental fractures
-Corrective osteotomies
-Revision fixation procedures
-Complex lower extremity trauma
