Femoral compression plate 31212 series

proximallockingtitanium

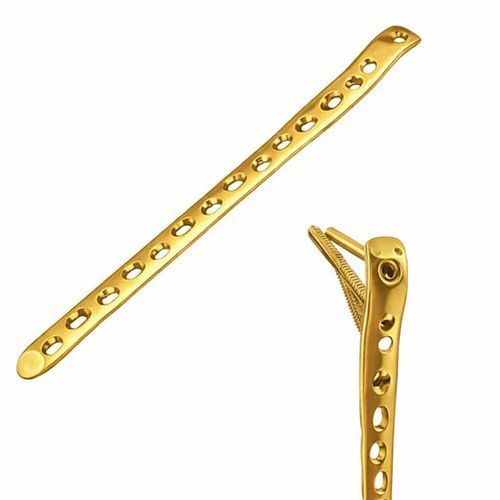

Femoral Proximal Combination Hole Locking Plate – Proximal Femur Fixation System

Product Overview
The Femoral Proximal Combination Hole Locking Plate is an advanced orthopedic fixation system intended for the treatment of proximal femoral fractures, including intertrochanteric, subtrochanteric, and complex metaphyseal fractures. The anatomically contoured plate provides stable fixation while supporting restoration of proximal femoral anatomy and lower limb alignment.

The proximal portion of the plate incorporates multiple screw fixation options that allow secure stabilization of the femoral neck and proximal femur. Combination holes enable the use of both locking and cortical screws, providing angular stability and compression fixation depending on fracture type and bone quality.

The titanium low-profile design minimizes soft tissue irritation while maintaining high biomechanical strength for demanding load-bearing applications.

Key Features
-Anatomically contoured proximal femur plate
-Combination holes compatible with locking and cortical screws
-Multidirectional proximal screw placement for enhanced fixation
-Stable fixation of intertrochanteric and subtrochanteric fractures
-High angular stability in osteoporotic bone
-Optimized support for proximal femoral fragments
-Low-profile design to reduce soft tissue irritation
-Allows compression and locking fixation techniques
-High mechanical strength for load-bearing stability
-Promotes early mobilization and rehabilitation

Technical Specifications
-Product Type: Proximal femoral combination hole locking plate
-Application: Proximal femur fracture fixation
-Material: Medical-grade titanium alloy (Ti-6Al-4V)
-Plate Configuration: Anatomically contoured proximal femoral plate
-Available Lengths: Multiple length configurations available
-Number of Holes: Various shaft configurations
-Configurations: Left / Right
-Compatible Screws:
• Locking screws: Ø 5.0 mm, 7.3mm Locking Cannulated Screw
• Cortical screws: Ø 4.5 mm
-Fixation Type: Combination locking and compression fixation
-Surface Finish: Color anodized
-Sterility: Non-sterile; to be sterilized before surgical use
-Usage: Single-use

Clinical Indications
-Intertrochanteric femur fractures
-Subtrochanteric fractures
-Proximal femoral fractures
-Comminuted femur fractures
-Osteoporotic fractures
-Revision fixation procedures
-Corrective osteotomies
