Tibia compression plate

distallaterallocking

Overview

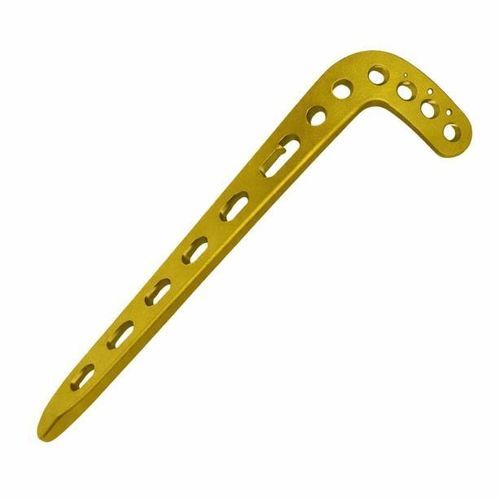

The tibial distal lateral locking plate is a precontoured implant designed to provide lateral fixation of distal tibia fractures with combination holes allowing both locking and compression screws. Available in left and right versions and multiple lengths to suit fracture patterns.

Technical Data

• REF: 31208
• Plate length: 115–216 mm (5 to 13 holes, 10 mm increments)
• Head holes: 6
• Sides available: Left / Right
• Screw compatibility: Ø 3.5 mm locking and 3.5 mm cortex screws
• Material: Ti-6Al-4V titanium alloy
• Surface finish: Color anodized

Surgical benefits

• Combination-hole design enables both locking and cortical fixation for versatility during fixation
• Anatomical contouring reduces intraoperative bending and preserves soft-tissue envelope
• Range of lengths and left/right options adapt to different fracture morphologies
• Ti-6Al-4V offers high strength-to-weight ratio suitable for load-bearing fixation

Compatibility and instrumentation
Compatible with Ø 3.5 mm locking and cortex screw systems. Requires standard locking plate instrumentation (drills, screwdrivers, torque control devices). Consult implant system manual for instrument set and surgical technique.

Ordering information

• REF: 31208 — Tibial distal lateral locking plate, combination hole
• Available lengths: 115–216 mm (5–13 holes)
• Sides: Left / Right
