Tibia compression plate 31203 series

medialdistallocking

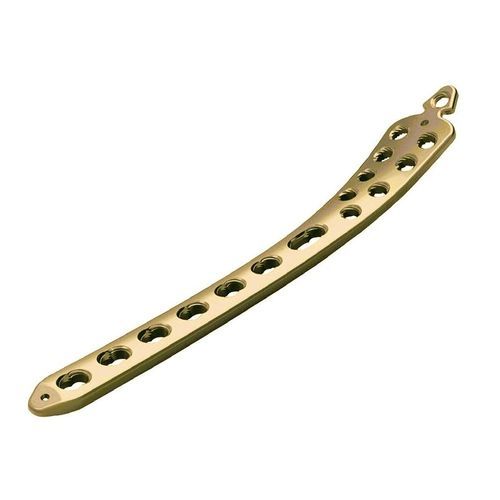

Tibial Distal Medial Combination Hole Locking Plate – Distal Tibia Medial Fixation System

Product Overview

The Tibial Distal Medial Combination Hole Locking Plate is an advanced orthopedic fixation system designed for the treatment of distal tibial fractures, including metaphyseal, periarticular, and intra-articular injuries. The anatomically contoured plate is specifically engineered to match the medial anatomy of the distal tibia, providing stable fixation and supporting restoration of lower limb alignment and ankle joint function.

The distal segment incorporates multiple locking screw options that allow fixation of small periarticular fragments and provide subchondral support beneath the articular surface. Combination holes located along the shaft permit the use of both locking and cortical screws, allowing surgeons to combine compression and angular stable fixation techniques within a single construct.

The low-profile titanium design minimizes soft tissue irritation while providing excellent biomechanical stability, even in osteoporotic bone.

Key Features
-Anatomically contoured design for the medial distal tibia
-Combination holes compatible with locking and cortical screws
-Multiple distal locking screw trajectories for periarticular fixation
-Stable fixation of distal tibial and pilon fractures
-High angular stability in osteoporotic bone
-Optimized support for articular and metaphyseal fragments
-Low-profile design to minimize soft tissue irritation
-Supports minimally invasive plate osteosynthesis (MIPO)
-Available in left and right configurations
-Promotes restoration of ankle alignment and function

Technical Specifications
-Product Type: Distal medial tibial combination hole locking plate
-Application: Distal tibia fracture fixation
-Material: Medical-grade titanium alloy (Ti-6Al-4V)
-Plate Configuration: Anatomically contoured medial distal tibial plate
-Available Lengths: Multiple length configurations available
-Number of Holes: Various shaft configurations
-Configurations: Left / Right
-Compatible Screws:
• Locking screws: Ø 3.5 mm
• Cortical screws: Ø 3.5 mm
-Fixation Type: Combination locking and compression fixation
-Surface Finish: Color anodized
-Sterility: Non-sterile; to be sterilized in a medical facility prior to use
-Usage: Single-use

Clinical Indications
-Distal tibial fractures
-Tibial plafond (pilon) fractures
-Metaphyseal distal tibial fractures
-Intra-articular distal tibial fractures
-Comminuted fractures
-Osteoporotic fractures
-Corrective osteotomies
-Revision fixation procedures
-Delayed union and nonunion
-Complex ankle-region trauma
