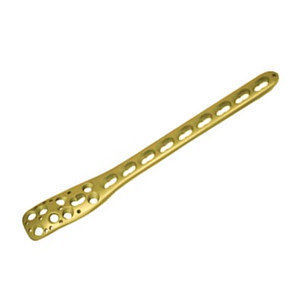

Humeral Proximal Combination Hole Locking Plate – Proximal Humerus Fixation System

Product Overview
The Humeral Proximal Combination Hole Locking Plate is an advanced orthopedic fixation system specifically designed for the treatment of proximal humerus fractures, including multi-fragmentary, displaced, and osteoporotic fractures. The anatomically precontoured plate provides stable fixation of the proximal humerus while supporting restoration of the natural anatomy of the shoulder joint.

The proximal segment of the plate incorporates multiple multidirectional screw holes that allow optimized fixation of the humeral head and tuberosities. Combination holes in the shaft section enable the use of both locking and cortical screws, providing angular stability and compression fixation according to surgical requirements.

The low-profile titanium construction minimizes soft tissue irritation and helps preserve surrounding vascular structures, supporting early mobilization and functional rehabilitation.

Key Features

-Anatomically contoured design for proximal humerus anatomy
-Combination holes compatible with locking and cortical screws
-Multidirectional proximal screw placement for enhanced fixation stability
-High angular stability for osteoporotic and comminuted fractures
-Optimized fixation of humeral head and tuberosity fragments
-Low-profile design to minimize soft tissue irritation
-Supports minimally invasive surgical techniques
-Provides stable fixation with balanced load distribution
-Promotes early shoulder mobilization and rehabilitation

Technical Specifications
-Product Type: Proximal humerus combination hole locking plate
-Application: Fixation of proximal humerus fractures
-Material: Medical-grade titanium alloy (Ti-6Al-4V)
-Plate Configuration: Anatomically contoured
-Available Lengths: Multiple length options available
-Number of Holes: Various shaft configurations
-Configurations: Universal
-Compatible Screws:
• Locking screws: Ø 3.5 mm
• Cortical screws: Ø 3.5 mm
-Fixation Type: Combination locking and compression fixation
-Surface Finish: Color anodized
-Sterility: Non-sterile; to be sterilized before surgical use
-Usage: Single-use

Clinical Indications
-Proximal humerus fractures
-Three-part and four-part fractures
-Comminuted proximal humerus fractures
-Osteoporotic fractures
-Fractures involving the greater or lesser tuberosity
-Metaphyseal fractures of the proximal humerus
-Revision and reconstructive procedures


Proximal humerus fractures
-Three-part and four-part fractures
-Comminuted proximal humerus fractures
-Osteoporotic fractures
-Fractures involving the greater or lesser tuberosity
-Metaphyseal fractures of the proximal humerus
-Revision and reconstructive procedures
