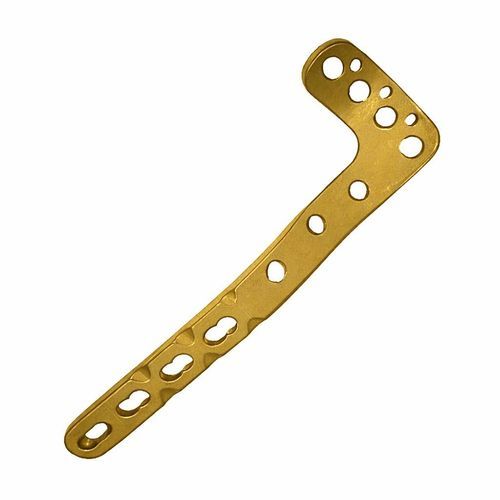

Large bone fragment compression plate 31206 series

lockingtitanium

L-Locking Plate Combination Hole – Angular Buttress Fixation System
Product Overview

The L-Locking Plate Combination Hole is a specialized orthopedic fixation system designed for the treatment of periarticular and metaphyseal fractures where angular support and buttress fixation are required. The L-shaped anatomical configuration provides enhanced stabilization in regions exposed to multidirectional mechanical loads while maintaining optimal fixation of small articular and metaphyseal fragments.

The combination hole design allows the use of both locking and cortical screws, enabling surgeons to combine compression and angular stable fixation within a single construct. The locking technology improves fixation strength, particularly in osteoporotic bone, while the buttress configuration helps prevent fragment displacement and collapse.

Manufactured from medical-grade titanium alloy, the plate offers high mechanical strength, excellent corrosion resistance, and superior biocompatibility.

Key Features
-Anatomical L-shaped design for buttress fixation
-Combination holes compatible with locking and cortical screws
-Provides angular stable fixation in periarticular regions
-Optimized support for metaphyseal and articular fragments
-High resistance to secondary fragment displacement
-Reliable fixation in osteoporotic bone
-Low-profile design minimizes soft tissue irritation
-Allows compression and locking fixation techniques
-Excellent biomechanical stability under multidirectional loading
-Manufactured from high-strength titanium alloy

Technical Specifications
-Product Type: L-locking plate with combination holes
-Application: Periarticular and metaphyseal fracture fixation
-Material: Medical-grade titanium alloy (Ti-6Al-4V)
-Plate Configuration: Anatomically contoured L-shaped plate
-Available Lengths: Multiple configurations available
-Number of Holes: Various proximal and shaft hole configurations
-Configurations: Left / Right
-Compatible Screws:
• Locking screws: Ø 3.5 mm
• Cortical screws: Ø 3.5 mm
-Fixation Type: Combination locking and compression fixation
-Surface Finish: Color anodized
-Sterility: Non-sterile; to be sterilized in a medical facility prior to use
-Usage: Single-use

Clinical Indications
-Periarticular fractures
-Metaphyseal fractures
-Intra-articular fractures
-Tibial plateau fractures
-Distal tibial fractures
-Distal radius fractures
-Osteoporotic fractures
-Comminuted fractures
-Corrective osteotomies
-Revision fixation procedures
-Reconstruction procedures requiring buttress fixation
