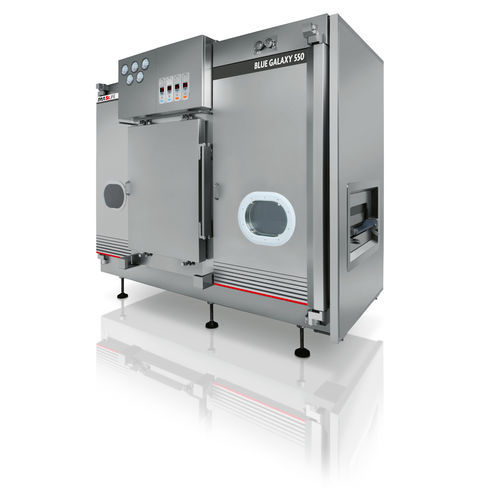

Sterilization tunnel BLUE GALAXY Series

for the pharmaceutical industryfor pharmaceutical applicationsdepyrogenation

Overview
The BLUE GALAXY Series are continuous depyrogenating tunnels designed for integration into pharmaceutical production lines requiring dry‑heat depyrogenation of glass containers. Models cover multiple conveyor widths and lengths to match production rates and line layouts. Pharmacopoeias indicate Escherichia Coli type 5 as the reference endotoxin for verifying depyrogenation effectiveness (minimum log 3 reduction).

Machine highlights

• Automatic unloading: fully automatic unloading sequence to maintain line throughput.
• Effective thermal treatment: air balancing, pressurisation and controlled heating/cooling for reproducible thermal exposure of vials and glass containers.
• User-friendly HMI: configurable control and automation with various PLC/PC options.
• Sterilisation options: dry‑heat process; optional VHP sterilisation for the cooling zone (IMA Life patent pending).

Process repeatability
Maintaining the hot zone at overpressure ensures consistent exposure time and lethality parameters across production runs, supporting reproducible endotoxin reduction.

Media / Visuals

• Image gallery: internal tunnel views, heating zone, vial infeed/outfeed and integrated line layouts.
• Machine video: product-related video material available on request.

BLUE GALAXY SERIES TECHNICAL DATA (table)
Model | 550 FL | 870 FL | 870 FLS | 1.250 FL | 1.250 FLS | 1.250 2 FLS | 1.250 3 FLS
X (mm) | 550 | 870 | 870 | 1250 | 1250 | 1250 | 1250
W (mm) | 1705 | 2025 | 2025 | 2410 | 2410 | 2410 | 2410
L (mm) | 3050 | 3050 | 3880 | 4480 | 7095 | 8315 | 10010
H (mm) | 2980 | 2980 | 3075 | 3175 | 3175 | 3175 | 3175
Upon request reduced height (mm) | 2700 | 2700 | 2760 | 2760 | 2760 | 2760 | 2760
Power (kW) | 39 | 50 | 60 | 70 | 145 | 149 | 214

DRY-HEAT VERSION (APPLICABLE ON ALL A.M. MODELS) (table)
Model | 550 FL | 870 FL | 870 FLS | 1.250 FL | 1.250 FLS | 1.250 2 FLS | 1.250 3 FLS
Power (kW) | 63 | 74 | 90 | 110 | 225 | 229 | 334
Reduced height (mm) | NOT AVAILABLE | NOT AVAILABLE | NOT AVAILABLE | NOT AVAILABLE | NOT AVAILABLE | NOT AVAILABLE | NOT AVAILABLE

Notes
Series intended for continuous depyrogenation of glass containers. Air balancing, controlled pressurisation and heating/cooling cycles ensure reproducible thermal treatment and compliance with endotoxin reduction targets.

Technical characteristics / Specifications

• Product family: BLUE GALAXY Series (depyrogenating tunnels for continuous dry‑heat depyrogenation).
• Brand: IMA Life (IMA Group technology and patents referenced).
• Sterilisation options: dry‑heat; optional VHP sterilisation of cooling zone (patent pending).
• Control/automation: configurable with various PLC/PC platforms and user‑friendly HMI.
• Process control: hot zone overpressure for repeatable exposure and lethality parameters.
• Automatic features: fully automatic unloading sequence.
• Representative models and key dimensions/power included; refer to technical table for complete variant list.
