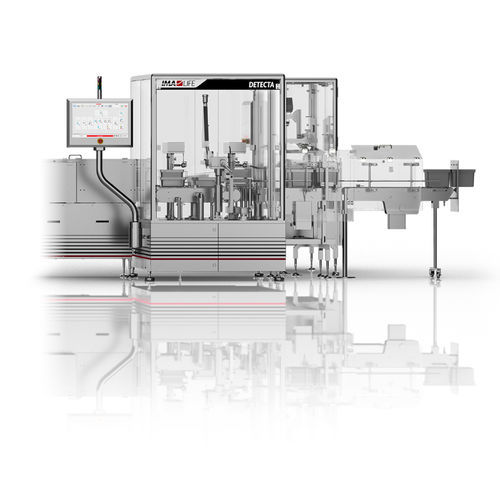

Optical inspection system DETECTA

automatedfully-automaticsemi-automatic

Product overview
DETECTA is a modular inspection system for in-line quality control of ready-to-use (RTU) syringes and pre-capped cartridges. The solution is composed of configurable inspection and handling modules connected by adaptable conveyors to suit various production layouts. DETECTA supports integration with high-speed fill-finish equipment and provides component-level and tub-level traceability and rejection.

Key functions

• Automatic tub coding: QR code printing or label application
• Verification of tub QR code or label presence and readability
• 100% plunger presence and plunger position check for each syringe or pre-capped cartridge
• Monitoring of stoppering performance
• Identification and single-component rejection of non-conforming items
• Full tub rejection when required
• Tracking and rejection of components previously flagged as faulty by upstream filling checks

Machine highlights

• Modular tub coding: printer or label applicator
• QR code / label presence and readability check
• 100% plunger presence and position inspection
• Automatic single-component rejection from the tub
• Full tub rejection capability
• Interfaces for upstream fill-finish machines; downstream connections on request

Vision systems
DETECTA uses telecentric and confocal imaging systems to perform precise inspections inside the nest. These vision technologies enable high-accuracy verification of printed codes, label placement and component geometry, suitable for high-speed syringe production lines.

Media & resources (summary)
Available assets on the product page include high-resolution images of the machine and layouts, detailed views of plunger presence/position checks, printing and code verification, tub transfer and rejection operations, plus video materials demonstrating integration with INJECTA fill-finish machines.

Technical specifications

• Automation: Fully robotic automated or semi-automated configurations
• Footprint (L x W x H mm): 6,000 x 4,700 x 2,050
• Plunger check: 100%
• RTU syringe range: 0.5 – 20 ml
• Syringe output: Dependent on fill-finish machine
• RTU cartridge range: 1 – 20 ml
• Cartridge output: Dependent on fill-finish machine
