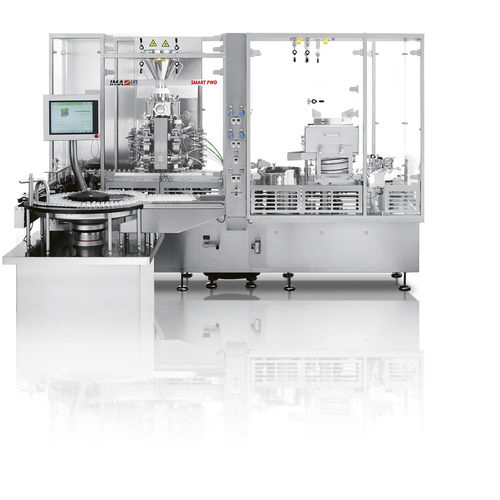

Intermittent-motion filling machine SMART PWD Series

vacuumfor powderspowder

Overview
The SMART PWD Series is an aseptic vacuum-pressure powder filling system engineered for challenging pharmaceutical powders and for dosing up to two different powders into the same vial, with integrated 100% check-weighing. It is designed for aseptic production lines and for next-generation antibiotic manufacturing where strict containment and sterility are mandatory.

Main functions

• Filling method: vacuum-pressure powder filling system.
• Two powders in one vial: capability to dose up to two different pharmaceutical powders into the same vial (double dosing).
• 100% IPC: advanced in-process control with high-speed 100% net and gross check-weighing.
• Stoppering system: pick & place stoppering with quick-release vacuum-assisted arm and brushless motor control, configurable per vial size.
• Capping station: optional integration of a capping station.
• Isolation technology: compatible with isolator integration and wetting-in-place (WIP) capability.
• Containment: cRABS for powder containment, with recirculating LAF and controlled temperature and humidity.

Operational details and technical features
Dual-dosing is achieved via vacuum-pressure dosing units and dosing disk technology, enabling accurate dosing from small quantities (from 10 mg). The machine integrates 100% net and gross check-weighing systems (full IPC) and media-fill compatible groups for process validation. Stoppering and any integrated capping operations are performed at full operating speeds. The design supports intermittent-motion transport and can be adapted for operation inside containment or isolator environments.

Technical table (excerpt)
SMART PWD SERIES TECHNICAL DATA
- ; Min. ; Max.
- Vial diameter ; 22 ; 54
- Vial height ; 35 ; 115
- Stopper diameter ; 20 ; 33
- Filling volume ; ; From 10 mg
- Output with 100% IPC * ; ; Up to 150 vpm (double index) / Up to 80 vpm (single index)
- Transport system ; ; Intermittent motion
- Standard voltage ; ; 400 V, 50 Hz, 3ph + N + G
- Installed power ; ; 19 kW

Stops, controls and validation
The line includes 100% net and gross check-weighing stations and supports media-fill groups for process validation. Stopper presence and height checks and additional vision/inspection checks are integrated as part of the IPC strategy.

Characteristics / technical specifications

• Series / model: SMART PWD Series
• Brand: IMA
• Filling method: vacuum-pressure powder filling system
• Double dosing: capability to dose up to 2 different powders into the same vial (double index)
• Filling volume: from 10 mg
• Production (with 100% IPC): up to 150 vpm (double index); up to 80 vpm (single index)
• Transport: intermittent motion
• Vial diameter range: 22 mm – 54 mm
• Vial height range: 35 mm – 115 mm
• Stopper diameter: 20 mm – 33 mm
• Standard voltage: 400 V, 50 Hz, 3ph + N + G
• Installed power: 19 kW
• Stoppering: pick & place vacuum-assisted arm, brushless motor control, configurable per vial size
• Containment: cRABS with recirculating LAF, controlled temperature and humidity
• Isolation ready: fit for isolator integration and wetting-in-place capability
• 100% IPC: full net and gross check-weighing integrated
• Possible integration: capping station
