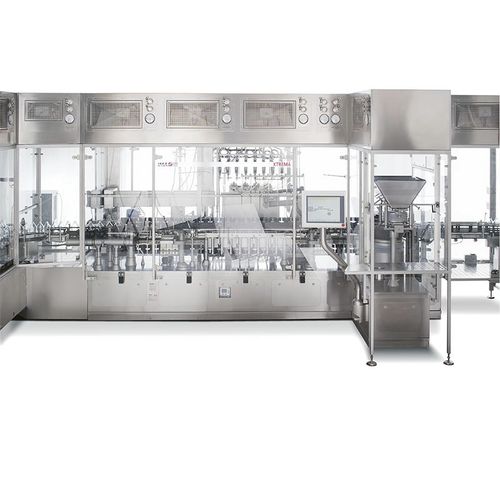

Vial filling and sealing machine XTREMA LV

for the pharmaceutical industrycontinuousintermittent-motion

Product overview
The XTREMA Series is a high-speed aseptic vial filling and stoppering machine engineered for pharmaceutical production of parenteral dosage forms. It minimises vial exposure to the environment and operators until sealing, and supports flexible process configurations with modular filling systems for liquids and powders.

Key features

• Superior ergonomics: movable operating groups for simplified access during use and maintenance.
• Unidirectional Airflow (UAF): machine geometry supports controlled unidirectional airflow to maintain aseptic conditions.
• VPHP exposure compatible: compatible with Vapour Phase Hydrogen Peroxide decontamination cycles.
• Tool-free size changeover: fully sealed design allows size changeover without tools.
• High performance: throughput up to 600 vials per minute (vpm).
• Selectable motion: continuous or intermittent transport selectable from the HMI.
• 100% IPC capability at maximum speed with anthropomorphic robotised nozzle carriers for in-line check-weighing.
• Innovative liquid dispensing pumps: new pump concept with “Quick Fit” assembly enabling no-tool removal of product-contact parts; CIP/SIP ready.

Performance & process highlights
Throughput up to 600 vpm; up to 15 filling dosing units; filling volume range 0.10–100 mL. The system supports 100% IPC at high speed and uses anthropomorphic robotised nozzle carriers for precise liquid handling. Design minimises product loss through Quick Fit pumps and CIP/SIP readiness, and supports both continuous and intermittent transport modes selectable at the HMI.

Integration & containment
Designed for straightforward integration with isolator technology or other containment solutions. Modular frame enables easy installation of multiple filling systems (liquids and powders) and facilitates placement inside isolators or containment lines while preserving ergonomics and serviceability.

Technical specifications

• Vial diameter: 14 mm – 54 mm
• Vial height: 30 mm – 110 mm
• Stopper diameter: 13 mm – 32 mm
• Filling dosing units: up to 15 units
• Filling volume: 0.10 – 100 mL
• Output: up to 600 vpm
• Output with 100% IPC: max. 600 vpm
• Transport system / motion modes: intermittent motion / continuous motion / intermittent/continuous selectable
