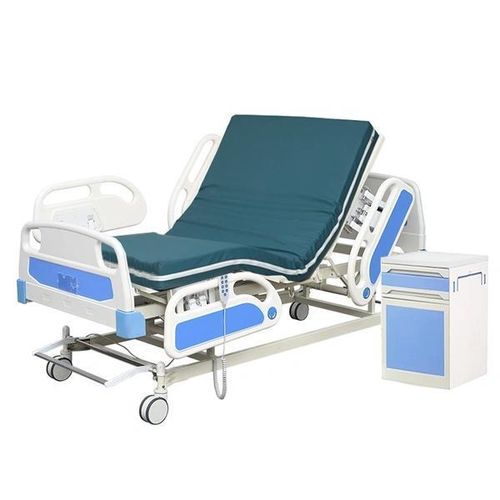

Hospital bed FY-E03F

electricheight-adjustableon casters

Overview
This medical functional bed is designed for ward use in healthcare facilities. It is supplied with a waterproof mattress and a bedside cabinet. Components include HDPE head/footboards, HDPE siderails with angle display and central-control casters, providing basic patient handling and positioning functions.

Functions

• Backrest adjustment: 0–75°
• Legrest adjustment: 0–35°
• Height adjustment: 420–700 mm
• Calf board angle adjustment
• HDPE head/footboards with anti-collision wheels; plug-in installation with safety lock
• HDPE siderails with angle indicator and gas spring support
• 5-inch central-control casters × 4
• Brake pedal × 1
• DC linear motors × 3
• Hand controller × 1
• Drip racks × 2

Mattress

• Size: 1950 × 900 × 80 mm
• Cover: Thick waterproof Oxford fabric
• Core: Eco-friendly coconut fiber + sponge (18D)
• Features: Available fabric colors; removable cover

Bedside cabinet

• Material: ABS + carbon steel
• Dimensions: 510 × 510 × 855 mm (with shoe rack)

Technical specifications

• Overall size: 2200 × 1030 × (420–700) mm
• Bedboard size: 1950 × 900 mm
• Safe load: 200 kg
• Back adjustment range: 0–75°
• Leg adjustment range: 0–35°
• Height range: 420–700 mm
• Head/footboard material: HDPE (with anti-collision wheels)
• Siderail: HDPE with angle display and gas spring support
• Casters: 5-inch central-control casters × 4
• Brake pedal: 1 pc
• Actuators: DC linear motors × 3
• Hand controller: 1 pc
• Drip racks: 2 pcs
• Mattress: 1950 × 900 × 80 mm; waterproof Oxford cover; coconut fiber + sponge (18D) core; removable cover
• Bedside cabinet: ABS + carbon steel; 510 × 510 × 855 mm (with shoe rack)
