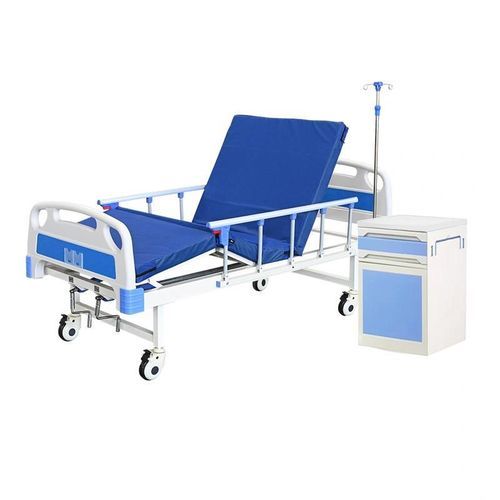

Medical bed FY-M02C

hospitalmechanicalmanual

Product overview
This medical bed is designed for use in hospital wards and care units. It is supplied complete with a mattress and a bedside cabinet for patient care and routine ward use.

Main features

• Overall size: 2130 × 960 × 500 mm
• Bedboard size: 1950 × 900 mm
• Maximum safe load: 200 kg
• Backrest adjustment: 0–75°; Legrest adjustment: 0–35°
• PP headboard and footboard with hook-type installation and safety lock
• 5-bar aluminium alloy siderails with locking mechanism
• Four 5-inch independent brake silent casters
• Two infinite-travel ball screws for actuation
• Two foldable metal cranks
• Two drip racks included

Bedside cabinet

• Dimensions: 510 × 510 × 855 mm (includes shoe rack)
• Materials: ABS top panels and carbon steel structure

Mattress

• Dimensions: 1950 × 900 × 80 mm
• Cover: thick waterproof Oxford fabric, removable
• Core: eco-friendly coconut fiber combined with 18D sponge
• Options: multiple fabric colours available; removable cover for cleaning

Technical specifications

• Product overall dimensions: 2130 × 960 × 500 mm
• Bedboard dimensions: 1950 × 900 mm
• Maximum safe load: 200 kg
• Back adjustment range: 0–75°
• Leg adjustment range: 0–35°
• Head/footboard: PP, hook-type installation with safety lock
• Siderails: 5-bar aluminium alloy with lock
• Casters: 5-inch independent brake silent casters × 4
• Drive: infinite ball screws × 2; foldable metal cranks × 2
• Accessories: drip racks × 2
• Bedside cabinet: 510 × 510 × 855 mm; ABS + carbon steel
• Mattress: 1950 × 900 × 80 mm; waterproof Oxford fabric; coconut fiber + 18D sponge core; detachable cover; multiple colour options
