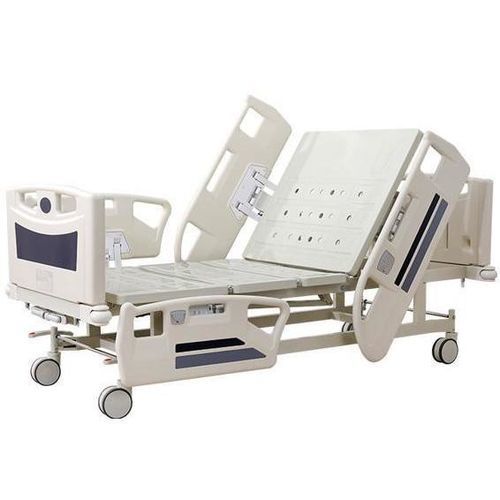

Nursing home bed FY-M02EC3

medicalhospitalmanual

Overview
Manual double-crank hospital bed designed for patient positioning and transfer in hospitals, clinics and long-term care facilities. Back and leg sections are adjustable to optimize patient positioning and clinical workflows.

Specifications

• Product size: 2130 × 1030 × 500 mm
• Bedboard size: 1950 × 900 mm
• Safe load: 200 kg
• Back adjustment range: 0–75°
• Leg adjustment range: 0–35°
• Head/footboard material: HDPE with anti-collision wheels
• Siderail: HDPE with angle display and gas spring support

Features

• HDPE head and footboard with anti-collision wheels; plug-in installation with safety lock
• HDPE siderails with angle indicator and gas-spring support for controlled movement
• Back and leg sections operated by bidirectional limit ball screws for precise positioning
• Central 5-inch control casters for stable mobility and locking

Configuration

• 5-inch central control casters × 4 pcs
• Brake pedals × 2 pcs
• Bidirectional limit ball screws × 2 pcs
• Foldable ABS cranks × 2 pcs
• Drip rack × 2 pcs
• Storage basket × 1 pc

Intended use

• For adult patient care in hospitals, clinics and long-term care facilities
• Designed to facilitate patient handling, positioning and safe transport within clinical settings
