Hospital bed FY-M03F

manualmechanicalheight-adjustable

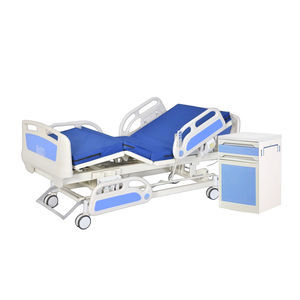

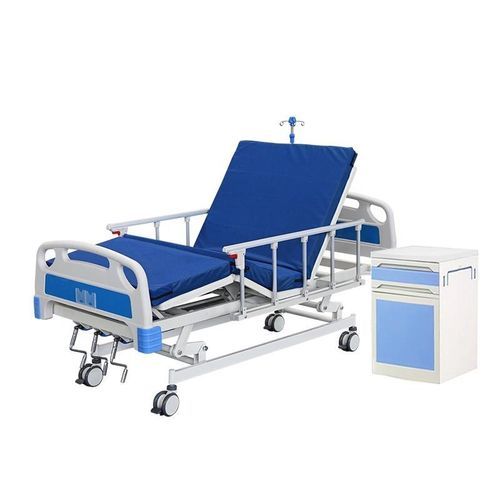

Product overview
The FY-M03F functional medical bed is intended for hospital wards and clinical care areas. Supplied as a set with a mattress and a bedside cabinet, the bed supports routine patient care, repositioning and bedside treatment.

Key features

• Back adjustment: 0–75°
• Leg adjustment: 0–35°
• Height adjustment range: 420–700 mm
• Leg separation adjustment
• PP head and footboard, hook-type installation with safety lock
• 5-bar aluminium-alloy side rails with metal lock
• 5-inch independent brake, silent casters × 4
• Bidirectional limit ball screws × 3 (actuation)
• Foldable metal cranks × 3
• Drip racks × 2 (accessories)

Mattress

• Size: 1950 × 900 × 80 mm
• Fabric: thick waterproof Oxford cloth
• Inner core: environmentally friendly coconut palm + sponge (18D)
• Features: available fabric colors; detachable cover for cleaning

Bedside cabinet

• Material: ABS + carbon steel
• Size: 510 × 510 × 855 mm (with shoe rack)

Dimensions (key sizes)
Product size: 2130 × 960 × (420–700) mm
Bedboard size: 1950 × 900 mm
Mattress size: 1950 × 900 × 80 mm
Bedside cabinet: 510 × 510 × 855 mm (with shoe rack)

Technical specifications

• Safe load: 200 kg
• Back adjustment range: 0–75°
• Leg adjustment range: 0–35°
• Height adjustable: 420–700 mm
• Head/footboard: PP, hook installation with safety lock
• Side rails: 5 bars, aluminium alloy, metal lock
• Casters: 5-inch independent brake, silent, 4 pieces
• Actuation elements: bidirectional limit ball screws (3 pieces) and foldable metal cranks (3 pieces)
• Accessories: drip racks (2 pieces)
• Mattress core: coconut palm + sponge (18D)
• Bedside cabinet material: ABS + carbon steel
