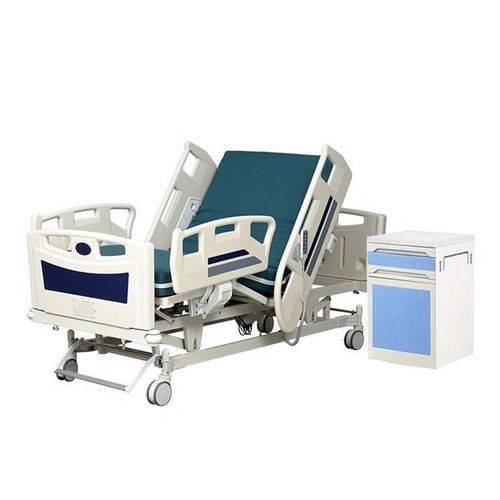

Hospital bed FY-E03E

electricheight-adjustableon casters

Overview
This product is a medical bed intended for use in hospital wards and clinical facilities. It is supplied complete with a mattress and a bedside cabinet and is designed for patient positioning and safe handling in care environments.

Main features

• Product size: 2200 × 1030 × (420–700) mm
• Bedboard size: 1950 × 900 mm
• Safe load: 200 kg
• Backrest adjustment: 0–75°
• Legrest adjustment: 0–35°
• Height adjustment: 420–700 mm
• Calf board angle adjustment
• HDPE head/footboards with anti-collision wheels; plug-in installation with safety lock
• HDPE siderails with angle indicator; gas spring support
• 5-inch central-lock casters × 4
• Brake pedal × 1
• DC linear motor × 3
• Hand controller × 1
• IV pole × 2

Mattress

• Size: 1950 × 900 × 80 mm
• Fabric: thick waterproof Oxford cloth
• Core: environmentally friendly coconut palm fiber + sponge (18D)
• Features: removable cover; multiple fabric color options

Bedside cabinet

• Material: ABS + carbon steel
• Size: 510 × 510 × 855 mm (with shoe rack)

Technical specifications

• Product size: 2200 × 1030 × (420–700) mm
• Bedboard size: 1950 × 900 mm
• Safe load: 200 kg
• Functions: backrest 0–75°; legrest 0–35°; height 420–700 mm; calf board angle adjustment
• Head/footboards: HDPE with anti-collision wheels; plug-in installation with safety lock
• Siderails: HDPE with angle indicator; gas spring support
• Casters: 5-inch central-lock × 4
• Brake pedals: 1 pc
• Actuators: DC linear motor × 3
• Controller: hand controller × 1
• Accessories: IV pole × 2
• Mattress: 1950 × 900 × 80 mm; thick waterproof Oxford cloth; core: coconut palm fiber + sponge (18D); removable cover; multiple fabric colors available
• Bedside cabinet: ABS + carbon steel; 510 × 510 × 855 mm (with shoe rack)
