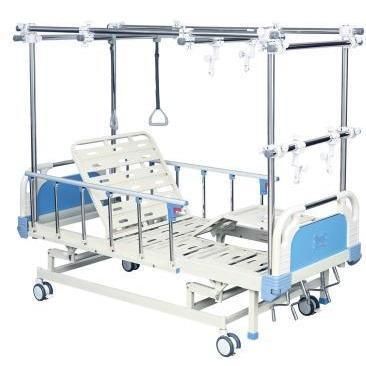

Medical bed FY-M06A

hospitalmanualheight-adjustable

Overview
The FY-M06A is an orthopaedic hospital bed designed for patient positioning and care in wards and recovery areas. It provides adjustable back and leg sections, height adjustment and integrated safety elements for clinical environments.

Specifications

• Overall size: 2130 × 960 × (420–700) mm
• Bedboard (mattress platform): 1950 × 900 mm
• Safe load (maximum patient weight): 200 kg
• Backrest adjustment range: 0–75°
• Legrest adjustment range: 0–35°
• Height adjustment range: 420–700 mm

Key features

• Independent leg separation adjustment for positioning
• ABS composite head/foot panels with bumper wheels and hook-type installation with safety lock
• 6-bar aluminium-alloy side rails with metal locking mechanism

Standard configuration

• 5-inch independent brake silent casters × 4 pcs
• Bidirectional limit ball screws × 4 pcs
• Foldable metal crank × 4 pcs
• Drip rack × 2 pcs

Recommended applications

• Orthopaedic wards, post-operative recovery and general hospital use
• Patient handling and positioning for examinations and procedures
