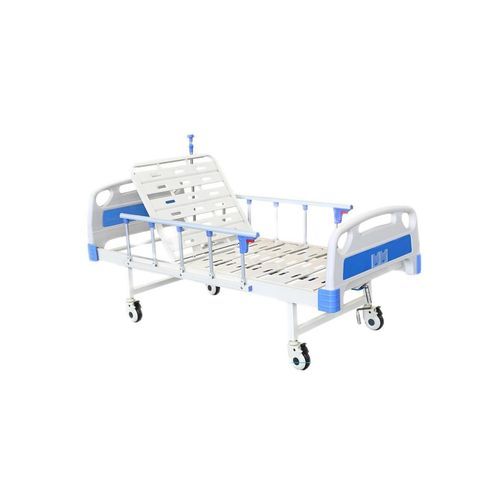

Medical bed FY-M01A

hospitalmanualon casters

Overview
Manual single-section hospital bed FY-M01A designed for general ward and clinical use. Backrest adjusts manually from 0° to 75° using a foldable crank. PP head and footboards with hook-type installation and safety lock ensure quick mounting and secure fixing.

Technical specifications

• Product size: 2070 × 960 × 500 mm
• Bedboard size: 1950 × 900 mm
• Safe load (maximum load): 200 kg
• Back adjustment range: 0–75° (manual)
• Head/footboard material: PP, hook-type installation with safety lock
• Siderails: 5-bar aluminum alloy siderails with metal lock
• Casters: 5-inch independent brake silent casters (4 pcs)
• Mechanism: unlimited ball screws (1 pc)
• Manual control: foldable ABS crank (1 pc)
• Accessories included: drip rack (2 pcs)

Configuration & accessories

• Standard configuration: bed frame, bedboard, PP head/footboards, 5-bar siderails, 4 silent brake casters, manual crank, 2 drip racks
• Optional on request: IV pole, mattress (various densities), oxygen bottle holder, bed extension kit, IV pump bracket

Applications

• General wards and medical clinics
• Recovery and postoperative units
• Long-term care and rehabilitation facilities
• Emergency and field medical stations

Ordering & customization

• Manual version as standard; electric actuation available on request
• Customization available: color, siderail type, mattress specifications
• Contact supplier for lead time, minimum order quantity and compliance documentation
