Hospital bed FY-E03A
electricheight-adjustableon casters

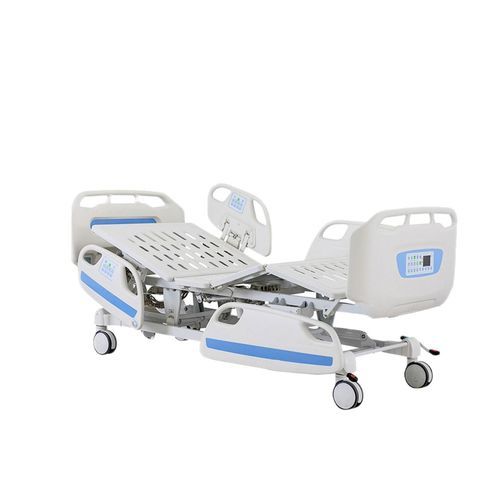

Hospital bed - FY-E03A - Jiangsu Fuyou Medical - electric / height-adjustable / on casters
Hospital bed - FY-E03A - Jiangsu Fuyou Medical - electric / height-adjustable / on casters
Add to favorites
Compare this product
Go to the Jiangsu Fuyou Medical website for more information

Characteristics

Applications
hospital
Operation
electric
Features
height-adjustable
Component
on casters, with weighing scale
Number of sections
5-section
Height

Min.: 420 mm
(16.54 in)

Max.: 700 mm
(27.56 in)

Width

103 cm
(40.6 in)

Length

220 cm
(86.6 in)

Weight capacity

200 kg
(440.9 lb)

Description

Overview / intended use
  • Electric 5-function hospital bed designed for acute care, recovery and long-term wards. Adjustable height and articulated sections enable safe patient handling and clinical procedures.


Technical specifications
  • Model: FY-E03A
  • Overall dimensions: 2200 x 1030 x (420-700) mm
  • Bedboard size: 1950 x 900 mm
  • Safe load (maximum patient weight): 200 kg
  • Backrest adjustment: 0–75°
  • Leg section adjustment: 0–35°
  • Height range: 420–700 mm


Main features
  • Three DC linear motors for independent height, back and leg adjustments
  • HDPE headboard and footboard with anti-collision wheels for safe positioning
  • HDPE siderails with integrated angle display and gas spring support for controlled lowering/raising
  • Calf board angle adjustment for improved patient comfort
  • Plug-in installation with safety lock for quick assembly and secure electrical connection


Standard configuration
  • 4 x 5-inch central control casters
  • 1 x brake pedal
  • 3 x DC linear motors
  • 1 x hand controller (wired)
  • 2 x drip racks


Materials, safety and maintenance
  • Head/footboard and siderails: HDPE – easy to clean and disinfect
  • Frame: powder-coated steel (corrosion-resistant)
  • Central braking system for stabilisation during care
  • Accessible motor housings for maintenance and service


Options and accessories
  • Patient scale integration (optional)
  • IV pole variants and oxygen bottle holders
  • Mattress types and anti-decubitus overlays available
  • Custom siderail configurations on request
