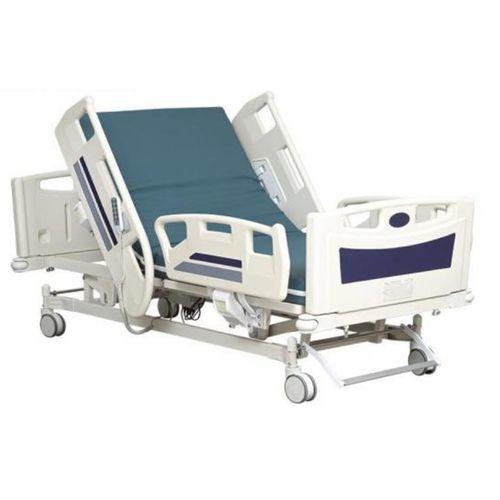

Hospital bed FY-E05Eelectricheight-adjustabletilting
Add to favorites
Compare this product
Characteristics
- Applications
- hospital
- Operation
- electric
- Features
- height-adjustable, tilting
- Component
- on casters, with locking wheels
- Number of sections
- 5-section
- Height
Min.: 420 mm
(16.54 in)Max.: 700 mm
(27.56 in)- Width
103 cm
(40.6 in)- Length
220 cm
(86.6 in)- Weight capacity
200 kg
(440.9 lb)
Description
Specification:
Features:
Configuration:
Technical specifications:
- Overall dimensions: 2200 × 1030 × (420–700) mm
- Bedboard size: 1950 × 900 mm
- Safe working load: 200 kg
- Back adjustment: 0–75°
- Leg adjustment: 0–35°
- Height adjustment: 420–700 mm
- Forward/backward tilt: 0–15° ± 3°
Features:
- Adjustable calf board angle
- HDPE head and footboards with anti-collision wheels; plug-in installation with safety lock
- HDPE side rails with angle display
- Gas spring support for stability and controlled movement
Configuration:
- 4 × 5-inch central control casters
- 1 × brake pedal
- 4 × DC linear motors
- 1 × hand controller
- 2 × IV poles (drip racks)
Technical specifications:
- Model: FY-E05E
- Overall dimensions: 2200 × 1030 × (420–700) mm
- Bedboard size: 1950 × 900 mm
- Safe load: 200 kg
- Back adjustment range: 0–75°
- Leg adjustment range: 0–35°
- Height adjustment range: 420–700 mm
- Forward/backward tilt: 0–15° ± 3°
- Head/footboards: HDPE with anti-collision wheels; plug-in installation with safety lock
- Side rails: HDPE with angle display
- Support: Gas spring
- Mobility & control: 4 × 5-inch central casters, 1 × brake pedal, 4 × DC linear motors, 1 × hand controller
- Accessories: 2 × IV poles
