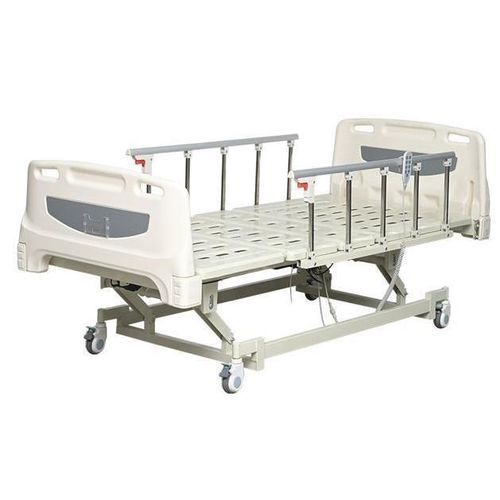

Hospital bed FY-E03G

electricultra-lowheight-adjustable

Description
The FY-E03G is an electric 3-function hospital bed designed for clinical and long-term care settings. Its ultra-low height supports safer patient transfers and fall prevention, while adjustable back and leg sections facilitate care activities and patient comfort.

Specifications:

• Product size: 2200 × 960 × (250–580) mm
• Bedboard size: 1950 × 900 mm
• Safe load: 200 kg
• Back adjustment angle: 0–75°
• Leg adjustment angle: 0–35°
• Height range: 250–580 mm

Features:

• Calf board angle adjustable to support leg positioning
• PP head/footboards with anti-collision wheels and hook-type installation with safety lock
• 5-bar aluminum alloy siderails with metal locking mechanism for patient protection
• Ultra-low height range to reduce fall risk and ease caregiver access

Configuration:

• 5-inch independent brake silent casters × 4 pcs
• DC linear motor × 3 pcs
• Hand controller × 1 pc
• Drip rack × 2 pcs

Technical specifications:

• Model: FY-E03G
• Product size: 2200 × 960 × (250–580) mm
• Bedboard size: 1950 × 900 mm
• Safe load: 200 kg
• Back adjustment angle: 0–75°
• Leg adjustment angle: 0–35°
• Height range: 250–580 mm
• Calf board: angle adjustable
• Head/footboard: PP with anti-collision wheels and safety lock (hook installation)
• Siderails: 5-bar aluminum alloy with metal lock
• Casters: 5-inch independent brake, silent (4 pcs)
• Actuators: DC linear motors (3 pcs)
• Hand controller: 1 pc
• Drip racks: 2 pcs
