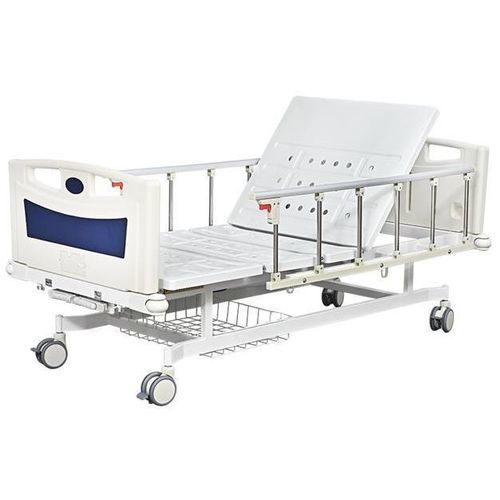

Hospital bed FY-M02EC1

manualon casterswith locking wheels

Product overview:
Manual hospital bed FY-M02EC1 with double-swing mechanism for back and leg adjustment. Designed for use in hospitals, clinics and long-term care facilities. HDPE head and footboards include anti-collision wheels and plug-in installation with safety lock for quick assembly.

Technical specifications:

• Product size: 2130 × 960 × 500 mm
• Bedboard size: 1950 × 900 mm
• Safe load/capacity: 200 kg
• Back adjustment range: 0–75°
• Leg adjustment range: 0–35°
• Head/footboard material: HDPE with anti-collision wheels
• Siderail: 6-bar aluminum alloy with metal lock
• Casters: 5-inch independent brake silent casters (4 pcs)
• Actuation: Bidirectional limit ball screws (2 pcs) and foldable ABS cranks (2 pcs)
• Accessories: 2 drip racks, 1 storage basket

Features:

• Double-swing mechanism providing independent back and leg positioning
• Plug-in HDPE head/footboards with anti-collision wheels for protection and easy replacement
• 6-bar aluminum alloy siderails with metal locking for patient safety
• Silent independent casters with brakes for mobility and stability
• Mechanical actuation via bidirectional limit ball screws and foldable ABS cranks

Configuration:

• 5-inch independent brake silent casters × 4 pcs
• Bidirectional limit ball screws × 2 pcs
• Foldable ABS crank × 2 pcs
• Drip rack × 2 pcs
• Storage basket × 1 pc

Applications:
Suitable for general wards, post-operative care, rehabilitation and long-term care units. Materials and design facilitate cleaning and routine maintenance, supporting clinical workflows.

Ordering information:
Contact the supplier for available options, spare parts and lead times. Confirm final specifications before ordering.
