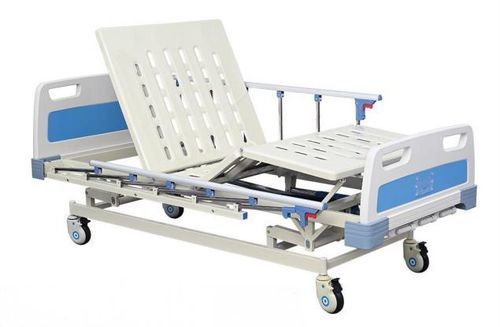

Medical bed FY-M03C

hospitalmanualgeriatric

Overview
The FY-M03C is a manual three-section ultra-low hospital bed designed for bedside care and patient handling in wards, geriatric and recovery units. It provides independent adjustment of backrest, legrest and bed height to support safe transfer and clinical procedures.

Technical specifications

• Overall dimensions: 2200 × 960 × (350–650) mm
• Bedboard size: 1950 × 900 mm
• Safe load: 200 kg
• Back adjustment range: 0–75°
• Leg adjustment range: 0–35°
• Height range (ultra-low to raised): 350–650 mm

Key features

• Three-function manual control via 3 bidirectional limit ball screws (back, leg, height)
• Leg separation adjustment for obstetric/clinical positioning
• PP head and footboards with hook-type installation and safety lock for easy removal
• 5-bar aluminum-alloy side rails with metal locking mechanism
• 5-inch independent brake silent casters for mobility and secure locking (4 pcs)

Configuration (standard accessories)

• Bidirectional limit ball screws × 3 pcs
• Foldable ABS cranks × 3 pcs
• 5-inch independent brake silent casters × 4 pcs
• Drip rack × 2 pcs

Clinical applications

• Suitable for general wards, postoperative recovery, geriatric care and clinics requiring ultra-low height for safer transfers
• Adjustable ranges support patient positioning for examinations and basic bedside procedures

Maintenance and infection control

• PP boards and aluminum alloy components are compatible with common hospital disinfectants; follow manufacturer cleaning protocols
• Regularly inspect fasteners, ball screws and caster brakes; maintain lubrication as specified

Ordering information

• Model: FY-M03C. Contact supplier for options, spare parts (cranks, casters, side rails) and custom configurations.
