Home care bed FY-E03C

intensive carenursing homehospital

Overview

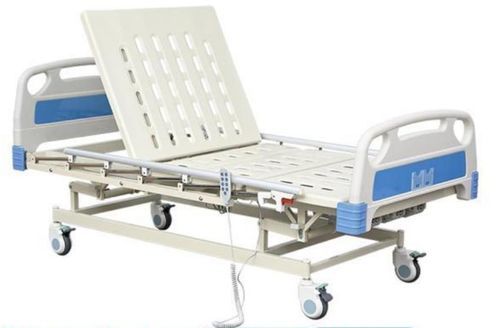

Electric 3-function hospital bed FY-E03C designed for clinical and long-term care environments. The bed features three DC linear motors for independent height, backrest and leg adjustments, a safe load of 200 kg and compact overall dimensions for ward and ICU use.

Key specifications

• Model: FY-E03C
• Overall dimensions: 2200 × 960 × (420–700) mm
• Bedboard size: 1950 × 900 mm
• Safe load (maximum capacity): 200 kg
• Backrest adjustment range: 0–75°
• Leg section adjustment range: 0–35°
• Height adjustment range: 420–700 mm

Features

• Independent adjustment of leg (calf) board angle for patient positioning
• PP head/footboards equipped with anti-collision wheels and hook-type installation with safety lock
• 6-bar aluminum alloy siderails with metal locking mechanism for patient protection

Configuration & accessories

• 5-inch independent brake silent casters × 4 pcs
• DC linear motor × 3 pcs (height, backrest, leg)
• Hand controller × 1 pc
• Drip rack × 2 pcs

Applications

• Hospital wards and intensive care units
• Rehabilitation and long-term care facilities
• Clinical examination and patient transfer settings

Ordering information

• Standard model: FY-E03C as specified above
• Optional accessories available on request: mattresses, IV pole, additional patient accessories and customization for specific clinical requirements
