Nursing home bed FY-M03D

hospitalmanualon casters

Overview

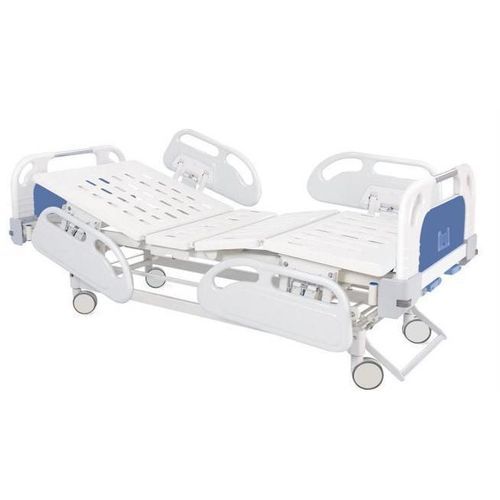

Three-section manual hospital bed FY-M03D designed for patient care and repositioning in clinical and long-term care settings. Manual back and leg adjustment with foldable cranks; maximum safe load 200 kg. Frame and components configured for hook-type installation and mobility.

Technical specifications

• Product size: 2130 × 1030 × 500 mm
• Bedboard (lying surface) size: 1950 × 900 mm
• Safe load: 200 kg
• Back adjustment: 0–75°
• Leg adjustment: 0–35°
• Frame / Construction: ABS composite type with fender wheels, hook-type installation with safety lock
• Siderail: PP siderail with angle indicator and gas spring support

Key features

• Three-section design for independent back and leg positioning
• ABS composite frame with integrated fender wheels for protection
• PP siderails with angle display and gas spring support for controlled operation
• Manual actuation via foldable ABS cranks and bidirectional limit ball screws for precise positioning

Configuration / Accessories

• 5-inch central control casters × 4 pcs
• Brake pedal × 1 pc
• Bidirectional limit ball screws × 3 pcs
• Foldable ABS crank × 3 pcs
• Drip rack × 2 pcs

Applications & notes
Suitable for use in hospitals, clinics and long-term care facilities for adult patients. Compatible with standard 1950 × 900 mm mattresses. Inspect casters, brakes and locking hooks during installation and prior to patient use. Clean surfaces with approved hospital disinfectants and follow local medical device maintenance procedures.
