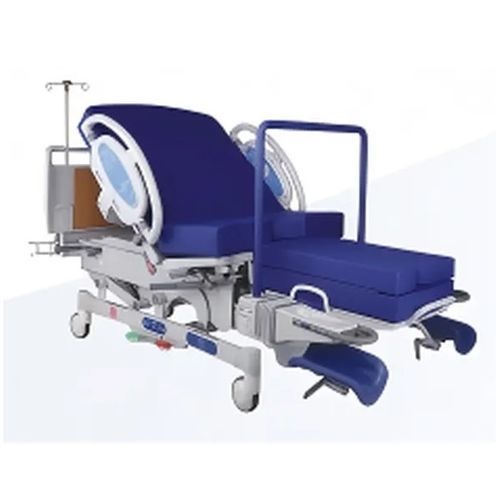

Electric delivery table FY-C1280F2trolley-mounted
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Installation
- trolley-mounted
- Lenght
2,336 mm
(92 in)- Width
1,057 mm
(41.6 in)
Description
Product overview
Key features
Technical parameters
Included accessories
- FY-C1280F2 is a multi-functional electric delivery bed integrating waiting, resting, delivery, obstetric care, gynecological examination, diagnosis and minor gynecological procedures in one unit. The design supports clinical workflows in delivery rooms and obstetrics departments.
Key features
- Electric control system: medical-grade electric control with smooth actuation and low noise, reducing caregiver workload.
- Humanized adjustable handrails: movable hidden handrails with 150 mm front/rear adjustment stroke to assist parturients during delivery effort.
- Dual-control guardrails: one-touch release with control keys on both inner and outer sides for staff and patient operation.
- Full electric touch control: luminous dimmable touch buttons on inner and outer guardrails to operate all bed functions.
- Night light & music: sensor-activated night light for floor illumination and USB port for music playback to improve patient comfort.
- Emergency power: built-in battery and three-color power indicator to maintain operation during power failure.
- Mobility and positioning: four 15 cm double-locking casters with three-gear adjustment, central brake and directional lock for stable positioning and flexible movement.
- Integrated delivery structure: leg supports, foot pedal and delivery table are integrated with the bed—no manual assembly required when switching positions.
- Low starting height: ultra-low initial bed height to facilitate safe transfer of pregnant patients onto/off the bed.
- CPR function: bed supports cardiopulmonary resuscitation positioning and rapid access during emergencies.
- Durable materials: base, frame and surfaces use steel with plastic coating and high-performance polymer components for reliable performance.
- Collapsible IV stand: foldable infusion pole for convenient clinical use.
Technical parameters
- Model: FY-C1280F2
- Overall dimensions: 2336 × 1057 mm
- Bed surface size: 1980 × 900 mm
- Maximum safe load: 230 KG
- Minimum bed height: 470 mm
- Bed lifting stroke: ≥410 mm
- Backboard independent folding angle: ≥65°
- Seat board independent tilting angle: ≥15°
- Bed rear tilting angle: ≥8°
- Seat board width: 415 mm
- Leg height adjustment range: 0–200 mm, adjustable and stoppable at any height
- Leg support outer swing angle: ≥90°
- Leg support folding angle: ≥90°
- Handrail adjustable stroke: 150 mm (front and rear movable)
- Caster specification: 15 cm double-locking casters with three-gear adjustment and directional moving function
Included accessories
- Sensor night light
- USB music player
- Three-color battery indicator
- Foldable IV infusion stand
