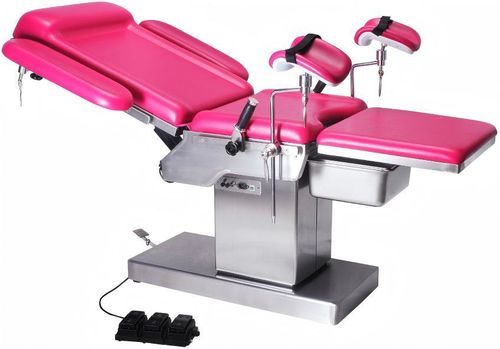

Electric delivery table FY--C1280C

floor-mounted

Product overview
The FY--C1280C multi-functional delivery bed is designed for obstetric delivery, gynecological surgery, routine examination and emergency cesarean section. It combines full-electric position adjustment, an ergonomic auxiliary platform and a 304 stainless steel structure to meet clinical hygiene and workflow requirements.

Key features

• Multi-functional medical application for delivery, gynecology, diagnosis and emergency C-section.
• Stable electric drive system with electric push rods for lifting, backboard folding and forward/backward tilting; low noise and reliable performance.
• High-quality 304 stainless steel structure for outer cover, side panels, dirt basin, bottom cover and column cover—easy to disinfect and clean.
• Humanized auxiliary platform with wide expansion angle for examinations and surgical access.
• Full electric position adjustment supporting various delivery positions.
• Built-in emergency power with battery level display for use during power failure.
• Seamless mattress with anti-amniotic fluid leakage, anti-fouling, acid/alkali and UV resistance.
• Supports Trendelenburg and reverse Trendelenburg positions for delivery and emergency treatment.
• Durable split leg holders with 180° adjustable rotation, withstand torque above 15 KG after locking.
• Integrated movable foldable handrail sliding on the side rail, with 50 KG tension capacity.
• Optional up-down folding swing armrest that can swing outward and fold up as a guardrail.
• Hidden casters with foot brake for flexible mobility and secure positioning.
• Standard-size dirt basin to collect fluids generated during delivery.

Technical parameters
Bed platform size: ≥1850 × 600 mm
Auxiliary platform size: ≥560 × 520 mm
Auxiliary platform expansion angle: ≥100°
Bed lifting range: ≥720–970 mm
Backboard adjustment angle: -10°–75°
Moving structure: Hidden casters with foot brake device
Emergency configuration: Built-in battery power display
Leg holder performance: 180° adjustable, withstand torque above 15 KG without loosening
Handrail load capacity: Integrated movable handrail withstands 50 KG tension
Optional accessory: Up-down folding swing armrest
Dirt basin size: 36 cm × 32 cm × 15 cm
Maximum load weight: 135 KG
Power supply: AC 220 V, 50 Hz
Main material: 304 stainless steel (outer cover, side panels, bottom cover, column cover, side cover)
Mattress: Seamless, anti-amniotic fluid leakage, anti-fouling, acid and alkali resistant, UV resistant

Model and specifications

• Model: FY--C1280C
• Bed platform size: ≥1850 × 600 mm
• Auxiliary platform size: ≥560 × 520 mm
• Auxiliary platform expansion angle: ≥100°
• Bed lifting range: ≥720–970 mm
• Backboard adjustment angle: -10°–75°
• Moving structure: Hidden casters with foot brake device
• Emergency configuration: Built-in battery power display
• Leg holder performance: 180° adjustable, withstand torque above 15 KG without loosening
• Handrail load capacity: Withstands 50 KG tension
• Optional accessory: Up-down folding swing armrest
• Dirt basin size: 36 cm × 32 cm × 15 cm
• Maximum load weight: 135 KG
• Power supply: AC 220 V, 50 Hz
• Main material: 304 stainless steel (outer cover, side panels, bottom cover, column cover, side cover)
• Mattress: Seamless, anti-amniotic fluid leakage, anti-fouling, acid and alkali resistant, UV resistant
