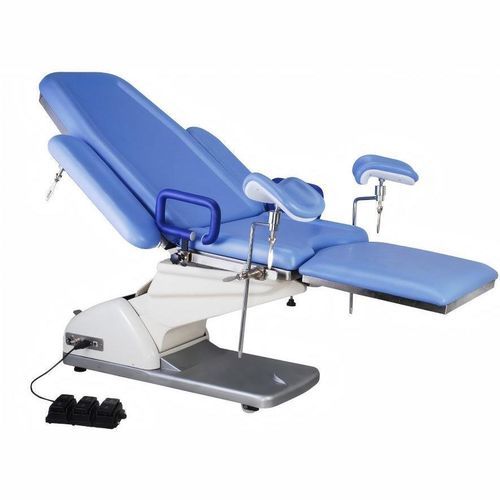

Gynecological examination table FY-C1280J2

minor surgerygynecologyadult

Product overview
FY-C1280J2 is a multi-functional gynecological examination bed intended for gynecological examination, diagnostic procedures, fertility treatments and minor gynecological surgery. It combines electric and manual control modes for flexible clinical use and patient handling.

Main features

• Wide application range: Designed for examinations, diagnostics, reproductive center procedures and general gynecological interventions.
• Imported linear push rod system: Core linear actuators for overall lifting, backboard folding and seat adjustment; low noise and stable motion.
• Ultra-low bed design: Low minimum height to facilitate patient access; movable casters with foot-brake positioning and foot-switch control for easy relocation and locking.
• Ergonomic bed surface: Contoured surface based on human biomechanics; integrated one-piece polyurethane foam mattress available in multiple colors.
• High-performance mattress: Seamless-wrapped foam prevents internal/external amniotic fluid leakage; resistant to fouling, acids/alkalis and UV; easy to clean.
• Rotatable auxiliary platform: Large outward expansion angle with free left/right swing to accommodate varied examination and surgical positions.
• Dual electric & manual control: Electric actuation with manual override for different clinical scenarios and locations.
• Emergency rescue function: Supports reverse Trendelenburg position (head-low/foot-high) for emergency treatment.
• Stable adjustable leg holders: Left/right split leg supports with 180° adjustment; locks to withstand torque >15 kg without loosening.
• Power-failure emergency guarantee: Built-in battery module for operation during power outages or bed relocation.
• Humanized auxiliary structure: Integrated handrails for support during delivery; optional up/down foldable armrests that swing outward and fold up as guardrails.
• High-grade plastic shell: Bottom cover, column cover and side covers in polymer engineering plastic with streamlined appearance.

Technical specifications

• Overall bed dimension: 1850 × 600 mm
• Auxiliary platform size: 550 × 500 mm (rotatable)
• Auxiliary platform expansion angle: ≥100° (left/right outward swing)
• Minimum bed height: 550 mm
• Bed lifting stroke: ≥330 mm
• Seat board adjustment angle: -2° to 10°
• Backboard adjustment angle: -6° to 70°
• Control mode: Electric + manual dual operation
• Mattress: One-piece polyurethane foam molding, seamless wrapping, anti-amniotic leakage, anti-fouling, acid/alkali resistant, UV resistant
• Leg holders: 180° adjustable, withstand torque >15 kg without loosening
• Emergency configuration: Built-in battery for power failure and relocation
• Optional accessory: Up-down foldable swing armrest
• Maximum load weight: 135 kg
• Power supply: AC 220 V, 50 Hz
• Outer shell material: Polymer engineering plastic
• Mobility: Movable casters with foot brake positioning device
