Medical trolley FY-621

for ultrasound systemsaluminumanodized aluminum

Product overview

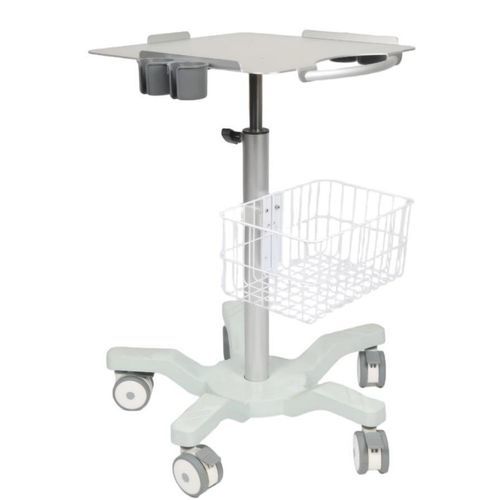

Mobile ultrasound trolley designed for clinical environments. Model FY-621 features an anodized 6061 aluminum alloy tabletop (420×420×3 mm), height adjustment 620–970 mm, integrated storage basket and couplant cup holder for efficient probe handling.

Technical specifications

• Base diameter: 600 mm, die-cast aluminum alloy
• Casters: five 3" silent casters with individual brakes
• Column: 6061 aluminum alloy, anodized surface, Ø 48 mm
• Storage wire basket: 320 × 180 × 150 mm, powder-coated iron wire
• Height adjustment range: 620 mm – 970 mm
• Work tabletop: 420 × 420 × 3 mm, 6061 aluminum alloy, anodized
• Net weight: 6.5 kg
• Packing size (individual): 700 × 590 × 175 mm
• Gross weight (with package): 7.8 kg
• Couplant cup holder: ABS injection molded, Ø 52 mm, depth 48 mm

Clinical advantages

• Adjustable height (620–970 mm) supports ergonomic scanning for operators of different stature
• Anodized aluminum tabletop is durable and easy to disinfect between patients
• Wide 600 mm base and five casters improve stability and smooth maneuverability in clinical settings
• Individual caster brakes secure the trolley during examinations
• Storage basket and dedicated couplant cup holder keep probes and gel accessible and organized

Packaging & logistics

• Net weight: 6.5 kg; gross weight with packaging: 7.8 kg
• Individual packing size: 700 × 590 × 175 mm — suitable for standard palletization
• Compact individual packaging reduces handling and simplifies distribution
