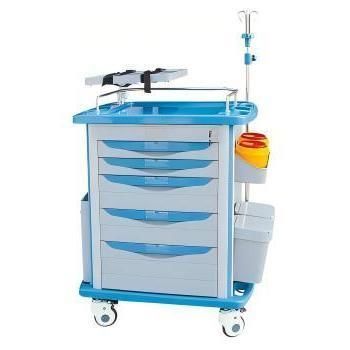

Emergency trolley FY-ET750-01 II

patient caremedicine distributiontreatment

Description
This emergency trolley is a lightweight medical cart designed for hospital emergency treatment, ward medication management and clinical nursing stations. The main body and modular drawers are made of ABS engineering plastic; drawers operate on silent three-section ball-bearing slides and include removable internal dividers. The worktop features a Φ12 stainless steel three-side guardrail; the frame uses plastic-steel uprights and a side-mounted central locking device. Supplied with writing board, flip storage box, telescopic infusion pole, oxygen cylinder bracket, 220V power socket and four Φ100 mm anti-winding swivel casters (2 braked). Delivered in individual packaging with clear net and gross weight and packing dimensions.

Features

• Main body and drawers: full ABS modular design — lightweight and corrosion-resistant.
• Worktop guardrail: Φ12 stainless steel welded three-side guardrail for secure placement of items.
• Frame & locking: plastic-steel uprights with side-mounted central locking for simple operation.
• Drawer layout: 5 drawers (2 small, 2 medium, 1 large) with removable dividers; drawers are fully detachable and reassemblable.
• Slide rails: 3-section ball-bearing silent slides for smooth, quiet operation.
• Left-side fittings: writing board and side-flip storage box for documentation and supplies.
• Casters: four Φ100 mm anti-winding swivel casters, 2 with brakes, for manoeuvrability and stability.
• Accessories: side-hung box; 2 Type B waste bins; rotating tray; telescopic infusion pole set; oxygen cylinder bracket; resuscitation board; 220V power socket set with cable.
• Packaging: lightweight design — net weight 44 kg; packaged dimensions and gross weight provided.

Specification

• Model: FY-ET750-01 II
• Overall dimensions: 750 × 480 × 930 mm
• Main material: ABS engineering plastic
• Drawer configuration: 2 small + 2 medium + 1 large (all-plastic ABS modular drawers) with removable dividers
• Slide rails: 3-section ball-bearing silent slides
• Worktop guardrail: Φ12 stainless steel welded three-side guardrail
• Uprights & lock: plastic-steel uprights with side-mounted central locking device
• Casters: four Φ100 mm anti-winding swivel casters (2 braked)
• Standard accessories: side-hung box; 2 Type B waste bins; rotating tray; telescopic infusion pole set; oxygen cylinder bracket; resuscitation board; 220V power socket set with cable
• Packaging dimensions: 780 × 560 × 940 mm
• Net weight: 44 kg; Packed gross weight: 49.6 kg

Technical data

• Small drawer outer/inner/panel height: 479 × 390 × 68 mm / 424 × 330 × 50 mm / 68 mm
• Medium drawer outer/inner/panel height: 479 × 390 × 138 mm / 424 × 330 × 110 mm / 138 mm
• Large drawer outer/inner/panel height: 479 × 390 × 208 mm / 424 × 330 × 175 mm / 208 mm
• Drawer slides: 3-section ball-bearing silent slides; drawers removable and reassemblable
