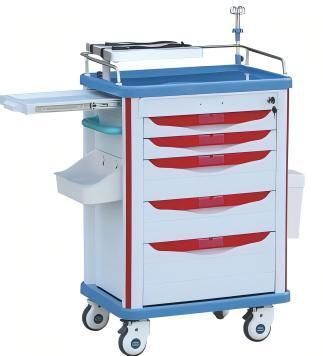

Emergency trolley FY-ET009H

stainless steelplasticwith tray

Description
This emergency trolley is a compact medical cart for hospital emergency rescue, ward medication storage and daily clinical nursing tasks. The body and drawers use ABS engineering plastic with an all‑ABS modular drawer design. The worktop features a three‑sided guardrail welded from Φ12 stainless steel bars. A side‑mounted central lock secures drawers. The trolley includes five drawers (2 small, 2 medium, 1 large) with built‑in dividers; drawers are removable and run on 3‑section ball‑bearing silent slides. Standard rescue accessories are supplied (telescopic infusion pole, oxygen cylinder bracket, resuscitation board, wired 220V socket). Four Φ100 mm anti‑winding swivel casters (2 braked) provide mobility. Unit is packaged separately with complete packaging dimensions and gross weight data for shipment.

Features

• Main body and drawers in ABS engineering plastic with modular all‑ABS structure for lightweight and easy cleaning.
• Three‑sided worktop guardrail welded from Φ12 stainless steel bars for durable protection.
• Side‑mounted central locking device for simple, reliable locking of all drawers.
• Five‑drawer layout: 2 small, 2 medium, 1 large, with built‑in dividers for organised storage of medical supplies.
• Drawers removable and re‑assemblable; equipped with 3‑section ball‑bearing silent slides for smooth, quiet operation.
• Blue and white appearance suitable for clinical environments.
• Four Φ100 mm anti‑winding swivel casters including 2 with brakes for stable directional control.
• Complete set of standard accessories to support emergency treatment, storage and power supply.
• Compact footprint and documented net/packed weights for logistics planning.

Specification
Overall Size | Overall dimensions | 620×470×910 mm
Main Material | Main Body | ABS engineering plastic
| Drawer Structure | All‑ABS modular design
Worktop Guardrail | Material & Craft | Φ12 stainless steel bars, welded three‑sided guardrail
Locking System | Locking Device | Side‑mounted central lock, simple operation
Drawer Layout | Total Drawers | 2 small drawers + 2 medium drawers + 1 large drawer
Small Drawer | Outer dimensions | 479×390×68 mm
| Inner dimensions | 424×330×50 mm
| Panel height | 68 mm
Medium Drawer | Outer dimensions | 479×390×138 mm
| Inner dimensions | 424×330×110 mm
| Panel height | 138 mm
Large Drawer | Outer dimensions | 479×390×208 mm
| Inner dimensions | 424×330×175 mm
| Panel height | 208 mm
Drawer Fittings | Internal Partition | Built‑in dividers for flexible partitioning
Disassembly Performance | | Drawers can be disassembled and assembled freely
Slide Rail | | 3‑section ball‑bearing silent slides
Casters | Specification | Four Φ100 mm anti‑winding swivel casters, 2 with brakes
Appearance | Color Scheme | Blue and white
Standard Full Accessories | Side‑hung box | 1 pc
| Type B waste bin | 1 pc
| Rotating tray | 1 pc
| Telescopic infusion pole set | 1 set
| Oxygen cylinder bracket | 1 pc
| Resuscitation board | 1 pc
| 220V power socket set with cable | 1 set
Packaging Info | Packaging dimensions | 740×550×1050 mm
Weight Data | Trolley net weight | 41 KG
| Packed gross weight | 46.6 KG

Technical characteristics

• Overall dimensions: 620×470×910 mm
• Main material: ABS engineering plastic (main body)
• Drawer structure: All‑ABS modular design
• Worktop guardrail: Φ12 stainless steel bars, welded three‑sided guardrail
• Locking: Side‑mounted central lock
• Drawer layout: 2 small + 2 medium + 1 large
• Small drawer outer/inner/panel: 479×390×68 mm / 424×330×50 mm / 68 mm
• Medium drawer outer/inner/panel: 479×390×138 mm / 424×330×110 mm / 138 mm
• Large drawer outer/inner/panel: 479×390×208 mm / 424×330×175 mm / 208 mm
• Drawer fittings: Built‑in dividers; drawers removable and re‑assemblable
• Slide rails: 3‑section ball‑bearing silent slides
• Casters: Four Φ100 mm anti‑winding swivel casters (2 with brakes)
• Appearance: Blue and white color scheme
• Standard accessories: side‑hung box, Type B waste bin, rotating tray, telescopic infusion pole set, oxygen cylinder bracket, resuscitation board, 220V power socket set with cable
• Packaging dimensions: 740×550×1050 mm
• Net weight: 41 KG
• Packed gross weight: 46.6 KG
