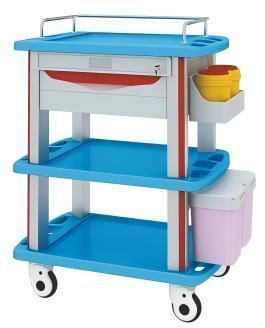

Emergency trolley FY-CT750-05

hospitaltreatmentmedicine distribution

Description:
This emergency treatment trolley FY-CT750-05 is designed for hospital emergency rescue, ward medicine storage and routine clinical nursing tasks. The main body and drawer are manufactured from ABS engineering plastic with an all‑ABS modular drawer design. The worktop is fitted with a three‑sided stainless steel guardrail welded from Φ12 stainless steel bars, supported by plastic‑steel uprights and equipped with a side‑mounted central locking device. It features a three‑layer tabletop with an independent middle storage platform and one medium drawer with built‑in detachable dividers. The drawer supports free disassembly and uses 3‑section ball‑bearing silent slides. Four Φ100 mm anti‑winding swivel casters (2 with brakes) provide smooth mobility and precise steering. Standard accessories for classified storage and medical waste disposal are included.

Features:

• Main body and drawer: ABS engineering plastic, all‑ABS modular structure for corrosion resistance and easy cleaning.
• Worktop guardrail: Three‑sided guardrail welded from Φ12 stainless steel bars for secure containment.
• Frame and lock: Plastic‑steel uprights with a side‑mounted central locking device for simple locking operation.
• Tabletop structure: Unique three‑layer design with an independent middle storage platform to increase accessible storage.
• Drawer layout: Single medium drawer with built‑in detachable dividers for flexible organization of supplies.
• Disassembly & slides: Drawer designed for free disassembly; fitted with 3‑section ball‑bearing silent slides for quiet, smooth operation.
• Casters: Four Φ100 mm anti‑winding swivel casters (2 braked) for stable directional control and easy maneuvering.
• Accessories: Supplied with standard side‑hung box, sharps containers and Type B waste bins to meet clinical requirements.

Specification:
Category | Item | Specification
Overall Size | Overall dimensions | 750×480×930 mm
Main Material | Main Body | ABS engineering plastic
| Drawer Structure | All‑ABS modular design
Worktop Guardrail | Material & Craft | Φ12 stainless steel bars, welded three‑sided guardrail
Body Frame & Lock | Uprights | Plastic‑steel uprights
| Locking Device | Side‑mounted central lock, simple operation
Tabletop Storage | Structure | Three-layer tabletop with one middle storage platform
Drawer Layout | Total Drawer | 1 medium drawer
Medium Drawer | Outer dimensions | 479×390×138 mm
| Inner dimensions | 424×330×110 mm
| Panel height | 138 mm
Drawer Fittings | Internal Partition | Built‑in dividers for flexible partitioning (detachable)
Disassembly Performance | | Drawer can be disassembled and assembled freely
Slide Rail | | 3‑section ball‑bearing silent slides
Casters | Specification | Four Φ100 mm anti‑winding swivel casters, 2 with brakes
| Mobility | Smooth movement and accurate steering
Standard Full Accessories | Side‑hung box | 1 pc
| Sharps containers | 2 pcs
| Type B waste bins | 2 pcs

Characteristics / Technical specifications:

• Overall dimensions: 750×480×930 mm
• Main material: ABS engineering plastic
• Drawer structure: All‑ABS modular design
• Worktop guardrail: Φ12 stainless steel bars, welded three‑sided guardrail
• Body uprights: Plastic‑steel uprights
• Locking device: Side‑mounted central lock
• Tabletop: Three-layer tabletop with one middle storage platform
• Drawer count/layout: 1 medium drawer
• Medium drawer outer dimensions: 479×390×138 mm
• Medium drawer inner dimensions: 424×330×110 mm
• Panel height: 138 mm
• Drawer fittings: Built‑in detachable dividers for flexible partitioning
• Disassembly: Drawer can be disassembled and assembled freely
• Slide rails: 3‑section ball‑bearing silent slides
• Casters: Four Φ100 mm anti‑winding swivel casters (2 with brakes)
• Mobility: Smooth movement and accurate steering
• Standard accessories included: side‑hung box (1 pc), sharps containers (2 pcs), Type B waste bins (2 pcs)
