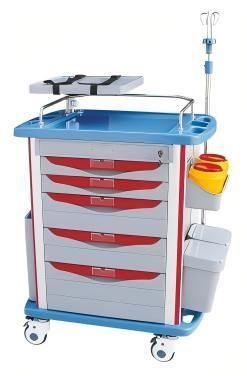

Emergency trolley Emergency Trolley (Old Model)

for medicinestoragepatient care

Description
This emergency trolley is a lightweight medical cart designed for hospital emergency response, ward medication storage and routine clinical nursing tasks. The body and drawers use ABS engineering plastic with an all-plastic modular drawer design. The worktop has a welded three-side stainless steel guardrail and plastic-steel uprights with a side central locking system. Drawers are fitted with 3-section silent ball-bearing slides and removable internal dividers for flexible storage. Standard rescue accessories are included and the trolley is delivered in individual packaging with full dimensional and weight data.

Features

• Main body and drawers in ABS engineering plastic with modular all-plastic drawer construction for lightweight, corrosion-resistant and easy-to-clean surfaces.
• Worktop guardrail: Φ12 stainless steel welded three-side guardrail for secure containment of equipment.
• Plastic-steel upright support and side-mounted central lock for straightforward locking and security.
• Five-drawer layout (2 small + 2 medium + 1 large) with removable dividers for flexible compartmenting of medications and supplies.
• Drawers removable and mounted on 3-section ball-bearing silent slides for smooth, low-noise operation.
• Left-side integrated writing board and flip-type material box for documentation and small-item storage.
• Four Φ100 mm anti-winding swivel casters (2 with brakes) for stable directional control and easy maneuvering.
• Complete set of standard accessories for clinical response and power supply included.
• Delivered with individual packaging and clear net/gross weight and package dimensions.

Specification
Category: Overall Dimension | Item: Overall trolley dimensions | Specification: 750 x 480 x 930 mm
Category: Main Material | Item: Main Body | Specification: ABS engineering plastic
Drawer Structure: All-plastic ABS modular design
Worktop Guardrail: Material & Craft: Φ12 stainless steel bars, welded three-side guardrail
Body Frame & Lock: Uprights: Plastic-steel uprights | Locking Device: Side-mounted central lock
Drawer Layout: Total Drawers: 2 small + 2 medium + 1 large drawer
Small Drawer - Outer size: 479 x 390 x 68 mm | Inner size: 424 x 330 x 50 mm | Panel height: 68 mm
Medium Drawer - Outer size: 479 x 390 x 138 mm | Inner size: 424 x 330 x 110 mm | Panel height: 138 mm
Large Drawer - Outer size: 479 x 390 x 208 mm | Inner size: 424 x 330 x 175 mm | Panel height: 208 mm
Drawer Accessories: Built-in detachable dividers for flexible partitioning | Disassembly: Drawers easily dismountable and reassemblable
Slide Rail: 3-section ball-bearing silent slides
Left Side Fittings: Writing board + flip-type material box
Casters Specification: Four Φ100 mm anti-winding swivel casters, 2 with brakes
Standard Full Accessories: Side-hung box (1); Type B waste bin (2); Rotating tray (1); Telescopic infusion pole set (1); Oxygen cylinder bracket (1); Resuscitation board (1); 220V power socket set with cable (1)
Packaging Info: Packaging dimensions: 780 x 560 x 940 mm
Weight Parameter: Trolley net weight: 44 KG | Packed gross weight: 49.6 KG

Technical specifications

• Model: FY-ET750-01 Emergency Trolley (Old Model)
• Main material: ABS engineering plastic
• Overall dimensions: 750 x 480 x 930 mm
• Packaging dimensions: 780 x 560 x 940 mm
• Net weight: 44 KG; Gross weight: 49.6 KG
• Drawer layout: 5 layers (2 small, 2 medium, 1 large)
• Drawer slides: 3-section ball-bearing silent slides
• Guardrail: Φ12 stainless steel welded three-side guardrail
• Casters: Four Φ100 mm swivel casters (2 with brakes)
• Includes: telescopic infusion pole, oxygen cylinder bracket, resuscitation board, wired 220V power socket, side-hung box, Type B waste bins (2), rotating tray
