Emergency trolley FY-ET750-0

hospitalfor medicinetransport

Description

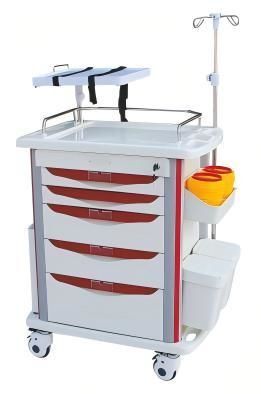

This emergency trolley is a lightweight medical cart designed for hospital emergency rescue, ward medicine storage and daily clinical nursing. The main body and drawers are manufactured in ABS engineering plastic with a full ABS modular structure. The worktop is fitted with a welded three-sided stainless steel Φ12 guardrail, supported by plastic‑steel uprights and a side‑mounted central locking device. Drawers run on 3-section ball-bearing silent slides, include built-in removable dividers and can be detached and reassembled freely. The left side integrates a writing board and a flip-open material box. Standard rescue accessories include a telescopic infusion pole, oxygen cylinder bracket, resuscitation board and a wired 220V power socket. Mobility is ensured by four Φ100 mm anti-winding swivel casters (2 with brakes). The trolley is delivered in an independent package with specified packaging dimensions and weight data.

Key features

• Main body and drawers made of ABS engineering plastic with full ABS modular design for lightweight, corrosion-resistant and easy cleaning.
• Welded three-sided worktop guardrail made of Φ12 stainless steel bars for secure placement of equipment.
• Plastic‑steel upright support frame combined with a side-mounted central locking device for simple and fast locking.
• Five-layer drawer layout (2 small, 2 medium, 1 large) with unified outer width and depth; built-in removable dividers for flexible compartmentalisation.
• Drawers are detachable and reassemblable and run on 3-section ball-bearing silent slides for quiet and smooth operation.
• Left-side writing board and flip-open material box for medical record keeping and storage of small nursing articles.
• Four Φ100 mm anti-winding swivel casters (2 braked) for smooth pushing and precise directional control.
• Complete set of standard accessories covers storage, emergency rescue and power supply needs.
• Lightweight overall structure with clear net and gross weight data and separate packaging for transport.

Technical specifications

• Model: FY-ET750-0
• Overall dimensions: 750×480×930 mm
• Main material: ABS engineering plastic
• Drawer design: All‑ABS modular design; 5 layers (2 small + 2 medium + 1 large)
• Small drawer outer/inner/panel: 479×390×68 mm / 424×330×50 mm / panel height 68 mm
• Medium drawer outer/inner/panel: 479×390×138 mm / 424×330×110 mm / panel height 138 mm
• Large drawer outer/inner/panel: 479×390×208 mm / 424×330×175 mm / panel height 208 mm
• Slide rails: 3-section ball-bearing silent slides
• Worktop guardrail: Φ12 stainless steel welded three-sided guardrail
• Frame & lock: Plastic‑steel uprights with side‑mounted central lock
• Left side functions: Writing board and flip-open material box
• Casters: Four Φ100 mm anti-winding swivel casters, 2 with brakes
• Standard accessories: side-hung box (1), Type B waste bins (2), rotating tray (1), telescopic infusion pole set (1), oxygen cylinder bracket (1), resuscitation board (1), 220V power socket set with cable (1)
• Packaging dimensions: 780×560×940 mm
• Net weight: 44 kg
• Packed gross weight: 49.6 kg
