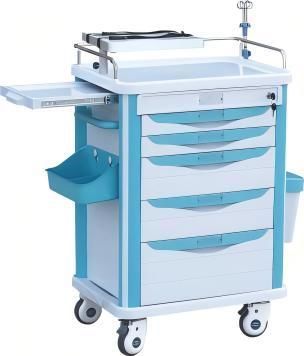

Emergency trolley FY-ET009

hospitalfor medicinestorage

Description
This emergency trolley is a compact medical cart designed for hospital emergency response, ward medication storage and routine clinical nursing tasks. The main body and drawers are made from ABS engineering plastic with an all-ABS modular drawer design. The worktop features a three-sided guardrail welded from Φ12 stainless steel bars and a side-mounted central locking device for quick, secure locking. The trolley includes five drawers (2 small, 2 medium, 1 large) with built-in dividers; drawers are removable and run on 3-section ball-bearing silent slides. Standard accessories include a telescopic infusion pole, oxygen cylinder bracket, resuscitation board, side-hung box, type B waste bin, rotating tray and a wired 220V power socket. Four Φ100 mm anti-winding swivel casters (2 with brakes) ensure smooth movement and precise steering. Net weight 41 kg; packed dimensions and gross weight provided for transport.

Features

• Main body and drawers in ABS engineering plastic — modular all-ABS design for easy cleaning and corrosion resistance.
• Worktop guardrail: welded Φ12 stainless steel three-sided guardrail for secure containment of equipment.
• Side-mounted central locking for simple, one-step locking of all drawers.
• Drawer layout: 2 small, 2 medium, 1 large with built-in dividers for flexible storage and organization.
• Removable drawers mounted on 3-section ball-bearing silent slides for quiet, smooth operation.
• Complete standard accessories for emergency use and power supply (telescopic infusion pole, oxygen bracket, resuscitation board, side-hung box, waste bin, rotating tray, 220V socket).
• Four Φ100 mm anti-winding swivel casters (2 with brakes) for manoeuvrability and stability.
• Compact footprint: 620×470×910 mm; net weight 41 kg; packaged size 740×550×1050 mm.

Specification

• Overall dimensions: 620 × 470 × 910 mm
• Main material: ABS engineering plastic (main body and drawers)
• Drawer structure: All-ABS modular design; total drawers: 2 small + 2 medium + 1 large
• Small drawer (outer/inner/panel): 479×390×68 mm / 424×330×50 mm / 68 mm
• Medium drawer (outer/inner/panel): 479×390×138 mm / 424×330×110 mm / 138 mm
• Large drawer (outer/inner/panel): 479×390×208 mm / 424×330×175 mm / 208 mm
• Slide rails: 3-section ball-bearing silent slides
• Worktop guardrail: Φ12 stainless steel bars, welded three-sided
• Locking: Side-mounted central locking device
• Casters: Four Φ100 mm anti-winding swivel casters (2 with brakes)
• Standard accessories: side-hung box, type B waste bin, rotating tray, telescopic infusion pole set, oxygen cylinder bracket, resuscitation board, 220V power socket set with cable
• Packaging dimensions: 740 × 550 × 1050 mm
• Net weight: 41 KG; Packed gross weight: 46.6 KG
