Emergency trolley FY-ET750

hospitalmedicine distributionstainless steel

Overview

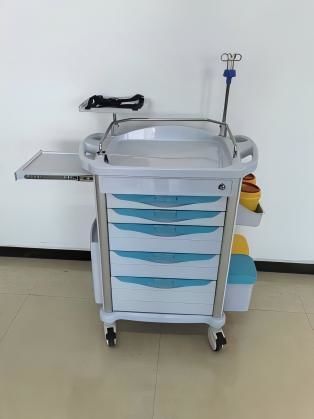

This emergency trolley is designed for hospital emergency rescue, clinical drug management and ward nursing stations. It features a high-strength aluminum alloy profile frame, a 1.0 mm electrolytic steel-plastic composite cabinet body with antibacterial electrostatic powder coating, and a one-piece blow-molded ABS worktop. Drawers use an all-ABS modular design and the unit includes front central locking, side accessories and Φ100 mm anti-winding swivel casters for reliable mobility.

Key features

• High-strength aluminum alloy profile frame for compact, stable structure.
• 1.0 mm electrolytic plate steel-plastic cabinet with antibacterial electrostatic powder coating.
• One-piece blow-molded ABS worktop; stainless steel guardrails optional; drawers in full ABS modular construction.
• Front-mounted central lock for secure, simple operation.
• Left side: writing board and document box; Right side: side-hung box, sharps containers and waste bins for classified disposal.
• Drawer configuration: 2 small + 2 medium + 1 large with built-in detachable dividers and 3-section ball-bearing silent slides.
• Four plug-in Φ100 mm anti-winding swivel casters (2 with brakes) for smooth movement and accurate steering.
• Complete standard rescue accessories included to cover storage, emergency rescue, waste treatment and basic power needs.

Technical specifications

• Overall dimensions: 750×480×940 mm
• Frame material: High-quality aluminum alloy profiles
• Cabinet body: 1.0 mm electrolytic plate, steel-plastic composite
• Surface treatment: Antibacterial electrostatic powder coating
• Worktop: One-piece blow-molded ABS (stainless steel guardrails optional)
• Drawer layout: 2 small + 2 medium + 1 large; built-in dividers; 3-section ball-bearing silent slides
• Small drawer outer/inner/panel: 479×390×68 mm / 424×330×50 mm / 68 mm
• Medium drawer outer/inner/panel: 479×390×138 mm / 424×330×110 mm / 138 mm
• Large drawer outer/inner/panel: 479×390×208 mm / 424×330×175 mm / 208 mm
• Casters: Four Φ100 mm plug-in anti-winding swivel casters (2 with brakes)
• Net weight: 38 KG; Packed gross weight: 42.6 KG; Packaging dimensions: 780×550×910 mm

Standard accessories

• Writing board ×1
• Document box ×1
• Side-hung box ×1
• Sharps containers ×2
• Waste bins ×2
• Rotating tray ×1
• Telescopic infusion pole set ×1
• Oxygen cylinder bracket ×1
• Resuscitation board ×1
• 220V power socket set with cable ×1

Packaging & Weight

• Packaging dimensions: 780×550×910 mm
• Net weight: 38 KG
• Packed gross weight: 42.6 KG
